Waveshare: E-Paper LCD HAT for Raspberry Pi 2.13inch, Red/Black/White, SPI 250x122 - 13448

SKU

MD-02197

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PKR4,200.00

Quantity: 5

Notify me when the price drops

Categories: LCDs, Display Screens LCDs

Details

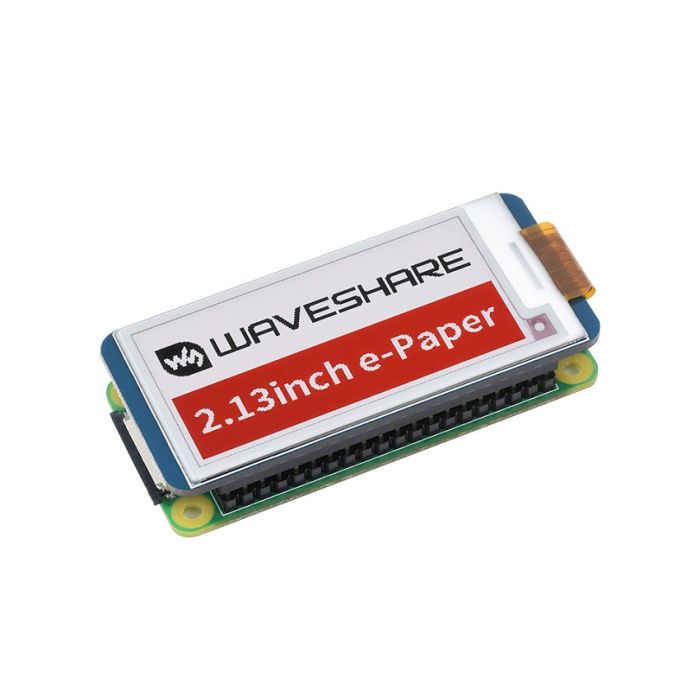

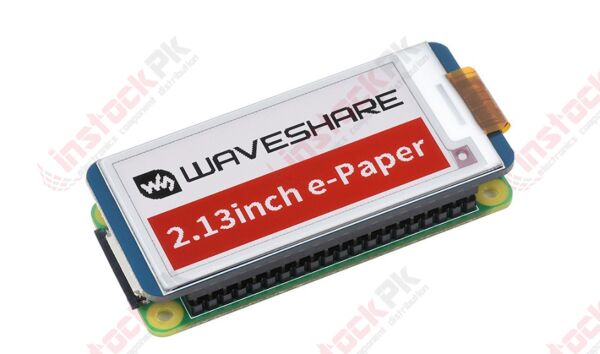

2.13″ e-Paper HAT (B)

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

			d
Size: 2.13″	Resolution: 250×122	Viewing Angle>170°	Grey Scale2	Display ColorRed/Black/White


CommunicationSPI	Display PanelE-paper	ExperiencePaper-like	Ambient Light Required	Display TypePassively Reflective

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with other controller boards like Arduino/STM32, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

operating voltage	3.3V/5V	display color	Red/Black/White
interface	3-wire SPI, 4-wire SPI	grey scale	2
outline dimensions	65 × 30.2mm	full refresh time	15s
display size	48.55 × 23.71mm	refresh power	26.4mW(typ.)
DOT PITCH	0.229 × 0.228mm	standby current	<0.01uA (almost none)
RESOLUTION	250 × 122pixels	viewing angle	>170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards, Jetson Nano

for reference only, the Raspberry Pi Zero is NOT included.

Onboard SPI Control Interface

For Use With Controller Boards Like STM32/Arduino

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output pin
