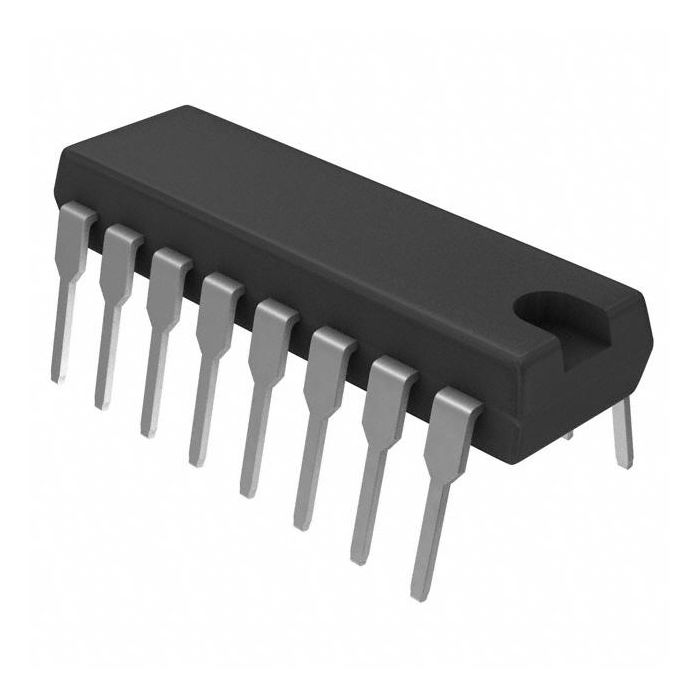

Vishay Semiconductors - Optoisolator Transistor 4 Channel CNY74-4H
PKR 650.00
SKU
MD-01163
- Buy 10 for PKR 295.00 each and save 55%
- Buy 25 for PKR 260.00 each and save 60%
Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP
| Categories | Isolators | |
|---|---|---|
| Optoisolators - Transistor, Photovoltaic Output | ||
| Manufacturer | Vishay Semiconductor Opto Division | |
| Series | - | |
Packaging  |
Tube |
|
| Part Status | Active | |
| Number of Channels | 4 | |
| Voltage - Isolation | 5300Vrms | |
| Current Transfer Ratio (Min) | 50% @ 5mA | |
| Current Transfer Ratio (Max) | 600% @ 5mA | |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs | |
| Rise / Fall Time (Typ) | 3µs, 4.7µs | |
| Input Type | DC | |
| Output Type | Transistor | |
| Voltage - Output (Max) | 70V | |
| Current - Output / Channel | - | |
| Voltage - Forward (Vf) (Typ) | 1.3V | |
| Current - DC Forward (If) (Max) | 60mA | |
| Vce Saturation (Max) | 500mV | |
| Operating Temperature | -55°C ~ 100°C | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 16-DIP |
| Part Number | CNY74-4H |
|---|---|
| Weight (KG) | 0.010000 |
| Manufacturer | Vishay |
| Product Availability | In Stock |
| Voltage (Min) | NA |
| Voltage (Max) | NA |
| Power | NA |
| Temperature Range (Min) | -55°C |
| Temperature Range (Max) | 100°C |
| Memory | NA |
| Num of Pin's | 16 |
| SMD_Package | DIP-16 |
