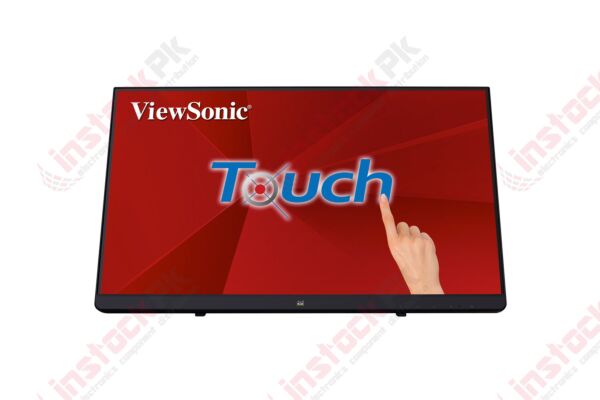

ViewSonic: 10 Point Multi Touch IPS LED Display Monitor 1080P 22" 1920x1080 - TD2230
The TD2230 features a durable edge-to-edge, 7H glass treatment and an ergonomic design that allows the display to be adjusted or sit flat on the table, providing durable surface quality and a smooth touch experience.
10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for multi-user interactive environments such as home entertainment, office, education, and commercial use.
SuperClear: Stunning Colour Performance & Wide-angle Viewing
Enjoy accurate and vivid colours with consistent levels of brightness no matter the vantage point. With SuperClear® IPS-type panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless, edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. A frameless bezel design makes touch more effortless, perfect for multi-user experiences, encouraging interactive enjoyment with seamless contact.
Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether while working, gaming, or enjoying the latest in multimedia entertainment.
HDMI, DisplayPort and VGA Inputs for Flexible Connectivity
HDMI, DisplayPort and VGA inputs, enable users to connect to game consoles, media players, digital cameras, laptops, satellite boxes, and other high-definition devices.
Cross-platform Compatibility
Cross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions.
*The OS compatibility may vary depending upon the device, the OS modification, the apps and the surrounding user environment. Users are advised to check and confirm compatibility with their devices before making any purchase.
USB 3.0 Port High Speed Connectivity
The TD2230 features a USB 3.0 hub that delivers easy connectivity to a diverse range of storage devices, peripherals, and high-definition electronics. It provides a faster recharge rate, data transfer rate and versatile data transmission capabilities.
Bookstand Design with Flexible Angle Adjustment and Flat Stand Use
A bookstand design allows the screen to be tilted and adjusted from 20 to 70 degrees, or rest flat on a desk or table.
With a stable design, the monitor is ready to use and can be placed without worry of damage on any surface. This makes it perfectly suited for a variety of scenarios: at home, in school or at the office.
7H Scratch-resistant Surface Hardness
The TD2230 touch display is constructed with a 7H hardness protective glass that provides increased scratch-protection to deliver the safest and most durable touch experience. It prevents any heavy damage caused by fingers, nails, or styluses during touch operations, making it ideal for use in kiosks, educational settings, or other public environments.
Enhanced Viewing Comfort
Flicker-Free and a Blue Light Filter eye care technologies help to eliminate eye strain from extended viewing periods.
ViewMode: Superior Colour Rendering & Intuitive Settings
ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, colour temperature, contrast, and brightness to deliver an optimised viewing experience for different screen applications.
Dual Integrated Stereo Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
VESA-mountable Design
It features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. With an easily detachable base, it’s easy to mount the display on its new stand or attach it to a wall mount.
SPECIFICATIONS
- DISPLAY
Type: 22”W (21.5” Viewable) ADS Type TFT LCD
Display Area: 476.64mm (H) x 268.11mm (V)
Resolution: Full HD 1920 x 1080
Brightness: 250 cd/m² (Typ)
Contrast Ratio: 1000:1 (Typ)
Dynamic Contrast Ratio: 50,000,000:1
Viewing Angles: 178 degrees / 178 degrees (Typ)
Response Time: GTG(AVR; Scaler OD): 5ms
Panel Surface: 7H - INPUT SIGNAL
Frequency: Analog: Fh = 24 ~ 82KHz ; Fv = 50 ~ 76Hz
Digital: Fh = 15 ~ 82KHz ; Fv = 50 ~ 76Hz
Sync: Analog: Separate Sync/ Composite Sync / Sync on Green
Digital: TMDS - COMPATIBILITY
PC: Display: Windows 7/8/8.1/10 certified
Touch module:
Windows 7/8/8.1/10 certified
Linux 2.6.38 tested
Chrome OS Kernel 3.10 tested
Android 4.0 tested
Mac®: Display: Power Mac tested
Touch module: iOS not support
- CONNECTOR
Digital: HDMI x 1 (v1.4 compatible), DisplayPort x 1 (v1.2 compatible)
Analog: VGA x 1
Audio Out: Earphone out x 1 (3.5mm plug)
Audio In: Audio in x 1 (3.5mm plug) - SPEAKERS
SPEAKERS: 3W x 2
- USB
Up Stream: Type B x 1
Down Stream:Type A x 2 - POWER
Power: 5.5 x 2.5 x 11 mm DC connector
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 25W
Optimize: 22W
Conserve: 19W - ERGONOMICS
Tilt:20± 2 ~ 70± 2, 90 (Flat) degrees
- SPECIAL FEATURES
DDC/2B, DDC/CI, HDCP,
KENSINGTON Microsaver Security Compatible, 12 OSD Languages, Windows 10, Flicker Free. - WALL MOUNT
VESA®: 100mm x 100mm
- OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation) - DIMENSIONS (W x H x D) (mm)
Physical with stand (mm): 490mm (W) x 299mm (H) x 47mm (D) (@0 degree)
490mm(W) x 299mm(H) x 130mm(D) (@20 degrees)
490mm (W) x299mm(H) x 283mm (D) (@70 degrees)
Physical without stand (mm): 490mm (W) x299mm(H) x 47mm (D)
Packaging (mm): 550mm (W)x 371mm (H) x 114mm (D) - WEIGHT
Net with stand (kg): 3.58kg
Net without stand (kg): 3.58kg
Gross (kg): 4.7kg - REGULATIONS
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BIS, CCC, China RoHS, China Energy Label
- WARRANTY
*Warranty offered may differ from market to market
- PACKAGE CONTENTS
LCD Display
AC/DC Adapter (1.5m)
Power Cable (1.5m)
HDMI Cable (1.5m)
USB3.0
Upstream Cable (1.5m)
Audio Cable (1.5m)
Quick Start Guide
| Part Number | TD2230 |
|---|---|
| Manufacturer | ViewSonic |
| Product Availability | Available on Demand |
