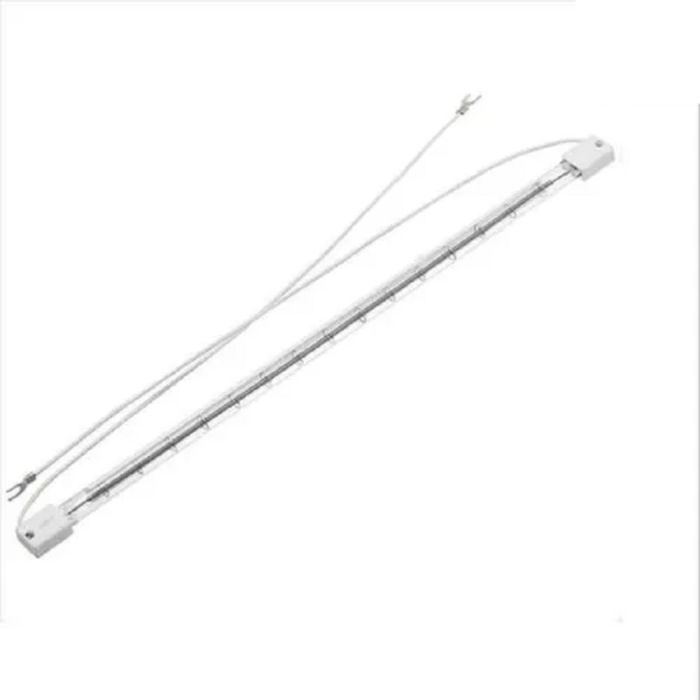

Victory: Halogen InfraRed Quartz Reflector Heater Lamp QIR 230mm Fork 400V 2500W - 6440255C
PKR 6,500.00
SKU
LD-02199
- Buy 3 for PKR 6,175.00 each and save 5%
- Buy 10 for PKR 5,980.00 each and save 8%
- Buy 25 for PKR 5,850.00 each and save 10%
Specifications:
- Wattage: 2500W, 2500 Watt, Watts
- Voltage: 400V, 400 Volt, Volts
- Base: SK15 Flexi Ceramic Base with 9" 17AWG Insulated Wire Leads with Fork Terminals
- Glass: T3 Clear with White Reflector, 10mm Diameter
- Maximum Overall Length: MOL 14", 355mm
- Color Temperature: 1800°K, 1800K
- Burn Position: Horizontal
- Average Rated Life: 5000 Hours
- Filament: CC-8
- Infrared Quartz Heat Lamp
- Infra-Red Zone Heater
A = 355±2mm
B = 314mm Nominal
C = 230±5mm
E = 15.1mm
F = 10.5mm
G = 285±5mm
H = 5mm Maximum
Typical Use: Plastic Bottle Manufacturing, PET, Blow Moulding
Alternate Part Number:
Toshiba JHC400v2500w280BH,
Dr Fischer 14143z/98, QH2500W-400V-SK15,
Victory 6440255C,
IFR, QIR, QH2500T3, QIR400V-2500W, 170 White Reflector, High Temperature, Maximum Length 14.1", C-8, Plastic Blow Molding, QH2.5MT3/CL/HT/R,
Philips, Toshiba JHC 400V 2500W 280 BH
Krones PET Blow Moulding Machines
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
| Part Number | 6440255C |
|---|---|
| Weight (KG) | 0.100000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
