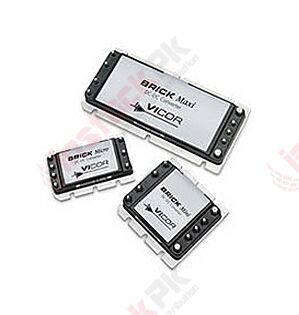

Vicor Micro DC to DC Converter V24C15T100BL
SKU
MD-00444
PKR15,255.00
Quantity: 0
These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component
Categories: Smart Boards, Power Module
These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency ZCS/ZVS switching provides high power density with low noise and high efficiency.
FEATURES:
- Low noise zero current switching and zero voltage
- switching technology
- Single-wire paralleling
- Output voltage adjust from 10-110%
- Logic enable / disable
- Input under voltage lockout
- Output overvoltage protection
SPECIFICATIONS:
- Isolated output
- Operation to 16 V at 75% power after startup
- Input surge withstand: 50 V for 100ms
- Programmable output: 10 to 110%
- Regulation: ±0.4% no load to full load
- Efficiency: Up to 89%
- Maximum operating temp: 100°C, full load
- Power density: up to 91 W per cubic inch
RELATED DOCUMENTS:
APPLICATIONS:
- Industrial and process control
- Distributed power
- Medical
- ATE
- Communications
- Defense
- Aerospace
PACKAGE INCLUDES:
- 1 X Vicor Micro DC to DC Converter V24C15T100BL
| Weight (KG) | 0.050000 |
|---|---|
| Manufacturer | Vicor |
| Voltage (Min) | 18V |
| Voltage (Max) | 36V |
| Output Voltage | 15V |
| Power | 100W |
| Current (A) | NA |
| Frequency | NA |
| Load Cell (kg) | NA |
| Output Type | Digital |
| Range | NA |
| Temperature Range (Min) | -40°C |
| Temperature Range (Max) | 100°C |
| Operating System | NA |
| Resistance Value (Ohm) | NA |
| Baud Rate | NA |
| Interface | NA |
| Num of Pin's | NA |
| Diameter | NA |
| Size (mm) | 2.28" x 1.45" x 0.5" |
