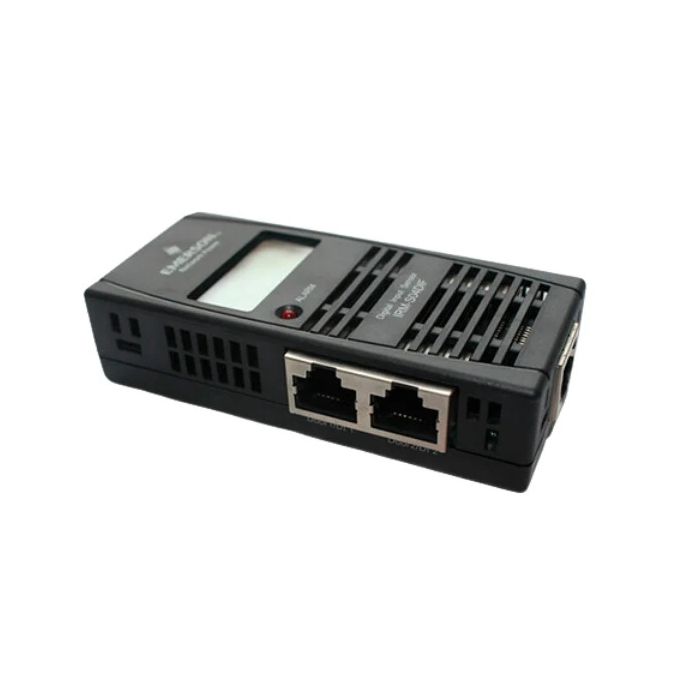

Vertiv: Intelligent Temperature Humidity Sensor Modbus RS485 for Data Centers - IRM-S02TH - 02311720

Overview:

IRM-S02TH intelligent temperature and humidity sensor is used to measure and display environemnt temperature and humidity. It supports MODBUS protocol through RJ45 port in RS-485 mode to configure and collect date. it is applicable for indoor sites which need temperature and humidity control such as communication rooms and IT data centers.

RJ4 Port
Two RJ45 ports are used in the electric connection of the ensor for power supply, communication and equipment connection in series.

DIP SWITCH:

The DIP switch is used to set enosr address to communicate with upper equipment through MODBUS protocol. The sensor address is composed of group number and serial number within the group. The DIP switchs are used to set address.

LCD Display Panel:

The LCD display panel can display sensor address, temperature and humidity date in real time.

Alarm Indicator:
When the temperature data is outside the configured data range or the sensor fails, the alarm indicator flashes.

Technical Specifications:
