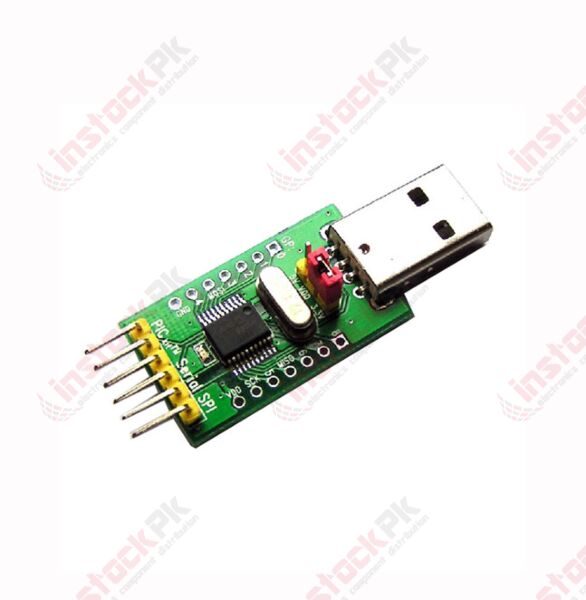

USB To SPI Master HID MCP2210 Converter Module - UTS2210

SPECIFICATIONS:

1. USB support full speed: 12 Mb/s
2. Used for processing the data throughout of 128 - byte buffer: received - 64 bytes, sent - 64 bytes
3. Fully configurable VID and PID allocation and string descriptor (also provide factory programming)
4. Compatible with USB 2.0
5. The USB driver and software support
6. Use standard HID driver (Windows XP/Vista / 7, built-in support onLinux and Mac OS)
7. Used in electric device configuration configuration utility
8. Used for USB - SPI communication, GPIO control and other utility function

SPI master device peripherals:

1. Support all four SPI mode (0, 1, 2, and 3)
2. Bit rate 1500 BPS to a maximum of 12 megabits per second

Configurable SPI transaction delay:

1.  Piece (effective) as to the delay time of the first data byte
2. Time delay of data to the data
3. Data to choose (set to null and void) time delay
4. SPI transaction length 65535 bytes long
5. Up to nine pieces of line selection, combination can use as a means of SPI given transaction (piece of line selection in GPIO pins and standby function between all together
6. 256 - byte block user EEPROM (can be accessed through some USBcommand)
7. Industrial-grade working temperature: - 40 deg to + 85 °C

BLOCK DIAGRAM:

PACKAGE INCLUDES:

1 X USB To SPI Master HID MCP2210 Converter Module UTS2210
