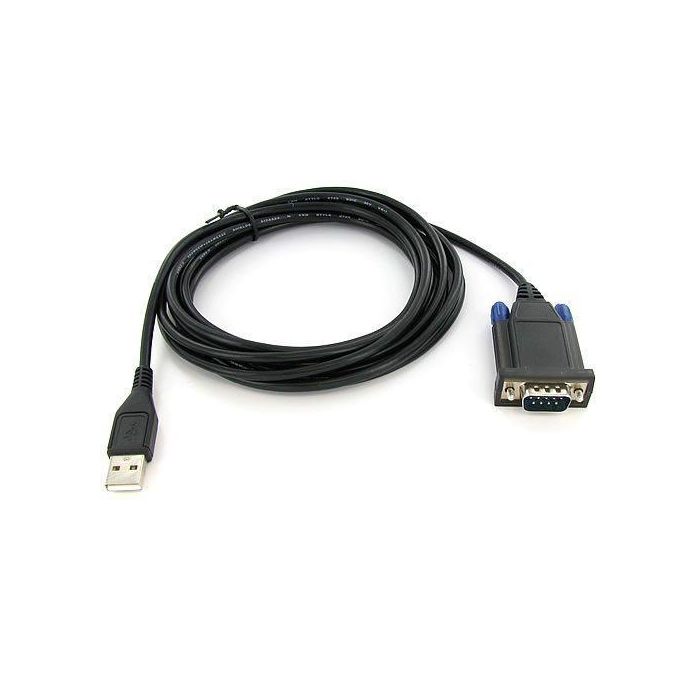

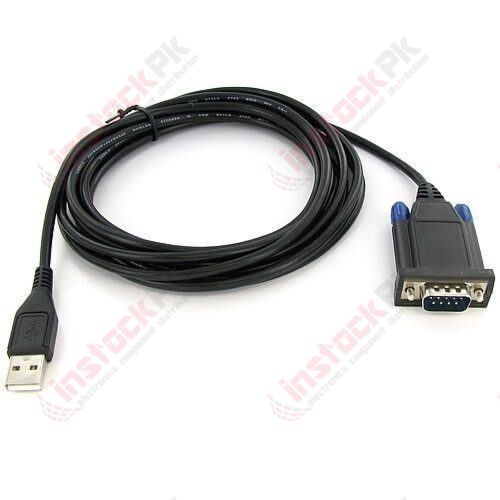

USB to Male RS232 Serial Port Adapter Cable 1.5M (DB9)

The USB to DB9 RS232 Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac or PC laptop or desktop computer through a USB port, as though the computer offered an onboard DB9M connector.A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, as well as offering compatibility with nearly all PLC Brands (AllenBradley, Siemens, Modicon, Servos, Indramat, Siemens, AB, etc.).

FEATURES:

1. Simple installation and operation provides robust serial connectivity to legacy PCs
2. Drawing power from the USB bus saves the hassle of carrying an external power adapter for this add-on serial portUSB to Straight-Through RS232 Serial Adapter
3. Easy to setup and install
4. No external power needed - draws power from the USB connection
5. Thin cables and light weight makes it portable and easy to carry
6. Supports serial data transfer rates of up to 1 Mbits/sec
7. Compatible with all popular PDAs, modems, printers, bar code scanners, etc.

 SPECIFICATIONS:

1. Bus Type:USB 2.0
2. Chipset ID:Prolific - PL-2303
3. FIFO: 192 Bytes
4. Max Baud Rate: 921.6 Kbps
5. Serial Protocol            :RS-232
6. OS Compatibility: Windows® 10 (32/64bit), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, ME, 98SE, CE 4.2, 5.2,Mac OS® 10.x (Tested up to 10.11),Linux 2.4.x - 3.9.x
7. Operating Temperature: 0°C to 60°C (32°F to 140°F)

PHYSICAL DIAGRAM:

1. 1 X USB to RS232 Serial Port Adapter Cable 1.5M (DB9)
