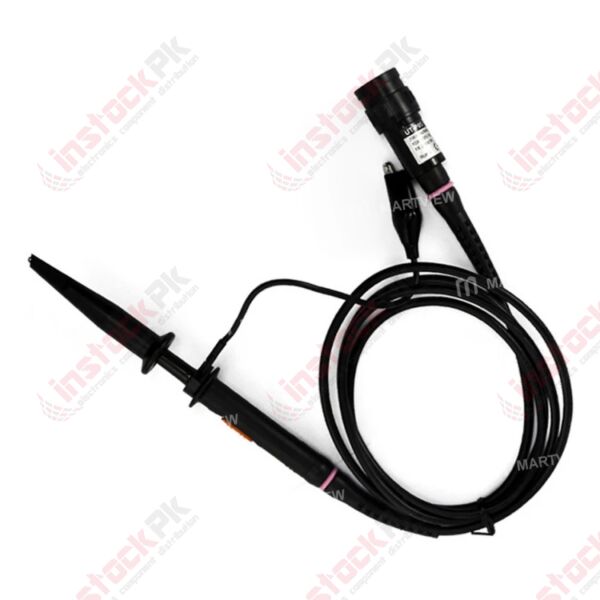

UNI-T: UT-P04 100MHz Passive Oscilloscope Probe (1:1 / 10:1 Switchable)
SKU
MD-02361
Category: Wires and Cables
The UNI-T UT-P04 is a high-quality, durable 100 MHz passive oscilloscope probe. Featuring a standard BNC connector and a switchable 1:1 / 10:1 attenuation ratio, it is an ideal replacement or upgrade lead designed for highly accurate signal diagnostics and waveform measurements across bench scopes up to 100 MHz.
Technical Specifications
| Technical Attribute | Specification Details |
|---|---|
| Manufacturer | Uni-Trend Technology (UNI-T) |
| Probe Type | Passive (No external power required) |
| Bandwidth | 100 MHz |
| Attenuation Ratio | 1:1 / 10:1 Switchable |
| Input Resistance | 1×: 1 MΩ ±2% | 10×: 10 MΩ ±2% |
| Input Capacitance | 1×: 85 pF – 115 pF | 10×: 14.5 pF – 17.5 pF |
| Max. Working Voltage | 1×: 300 Vpp (CAT II) | 10×: 600 Vpp |
| Compensation Range | 5 pF to 30 pF (at 10x attenuation) |
| Connector Type | Standard BNC Plug |
| Cable Length | 1.3 meters (approx. 4.25 feet) |
| Certifications | CE Attestation, UKCA |
| Compatible Models | Standard BNC DSOs (e.g., UNI-T UTD4082, UTD4102C) |
Key Product Features
- Dual-Gear Attenuation: Easily toggle between 1:1 and 10:1 factor switching directly from the probe handle to manage varying signal amplitudes.
- Adjustable Compensation: Features built-in frequency compensation adjustments to seamlessly balance square wave signals on any standard 1MΩ impedance oscilloscope.
- Durable Layout: Crafted from rugged wear-resistant plastic materials with ergonomic grooving to guarantee longevity and secure handling during active engineering testing.
- Plug-and-Play Setup: Standard BNC adapter fits directly into your oscilloscope without complex software setups or external power constraints.
| Part Number | UT-P04 |
|---|---|
| Manufacturer | UNI-T |
| Weight (KG) | 0.100000 |
| Material | NA |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
