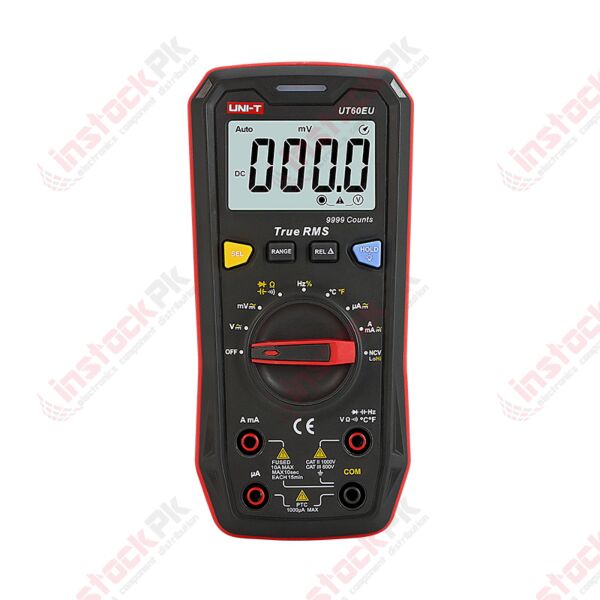

Uni-T: Prefessional Digital Multimeter DMM - UT60EU
UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.
Models in the UT60 Series: UT60EU, UT60BT, UT60S
Specifications of UT60 Series Digital Multimeters
|
Specification |
Range |
UT60EU |
UT60BT |
UT60S |
|
DC Voltage |
9.999mV/99.99mV/999.9mV/ |
±(0.5%+3) |
±(0.5%+3) |
±(0.5%+3) |
|
AC Voltage |
9.999mV/99.99mV/999.9mV/ |
±(0.8%+3) |
±(0.8%+3) |
±(0.8%+3) |
|
DC Current |
999.9uA/999.9mA/9.999A/10A |
±(0.8%+3) |
±(0.8%+3) |
±(0.8%+3) |
|
AC Current |
999.9uA/999.9mA/9.999A/10A |
±(1.0%+3) |
±(1.0%+3) |
±(1.0%+3) |
|
Resistance |
999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ |
±(0.8%+2) |
±(0.8%+2) |
±(0.8%+2) |
|
Capacitor |
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/9.99mF (UT60EU/UT60BT)/99.9mF(UT60S) |
±(4.0%+5) |
±(4.0%+5) |
±(4.0%+5) |
|
Frequency |
99.99Hz～9.999MHz |
±(0.1%+5) |
±(0.1%+5) |
±(0.1%+5) |
|
Duty Cycle |
0.1～99.9% |
±(3%+5) |
±(3%+5) |
±(3%+5) |
|
Temperatue |
–40℃～1000℃/–40°F～1832°F |
±4℃/±5℉ |
±4℃/±5℉ |
±4℃/±5℉ |
|
Features |
||||
|
Bluetooth |
√ |
|||
|
Display Count |
9999 |
9999 |
9999 |
|
|
Auto Range |
√ |
√ |
√ |
|
|
REL |
√ |
√ |
√ |
|
|
NCV |
√ |
√ |
√ |
|
|
Diode |
√ |
√ |
√ |
|
|
Continuity Test |
√ |
√ |
√ |
|
|
Acousto-optic Indication (NCV/continuity/battery power) |
√ |
√ |
√ |
|
|
Low Battery Indication |
≤3.6V |
√ |
√ |
√ |
|
Data Hold |
√ |
√ |
√ |
|
|
Auto Power Off |
15Min |
√ |
√ |
√ |
|
Operation Temperature |
0℃～40℃ |
|||
|
Safety |
CAT II 1000V/CAT III 600V |
|||
|
General Characteristics |
||||
|
Battery |
1.5V AAA x 3 |
|||
|
Product Color |
Red and Gray |
|||
|
Product Net Weight |
290g |
|||
|
Product Size |
169mm x 81mm x 46mm |
|||
|
Standard Individual Packing |
Gift Box, Manual, Thermocouple |
|||
|
Standard Quantity Per Carton |
20pcs |
|||
|
Standard Carton Size |
420mm x 320mm x 300mm |
|||
| Part Number | UT60EU |
|---|---|
| Manufacturer | UNI-T |
| Weight (KG) | 1.000000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
