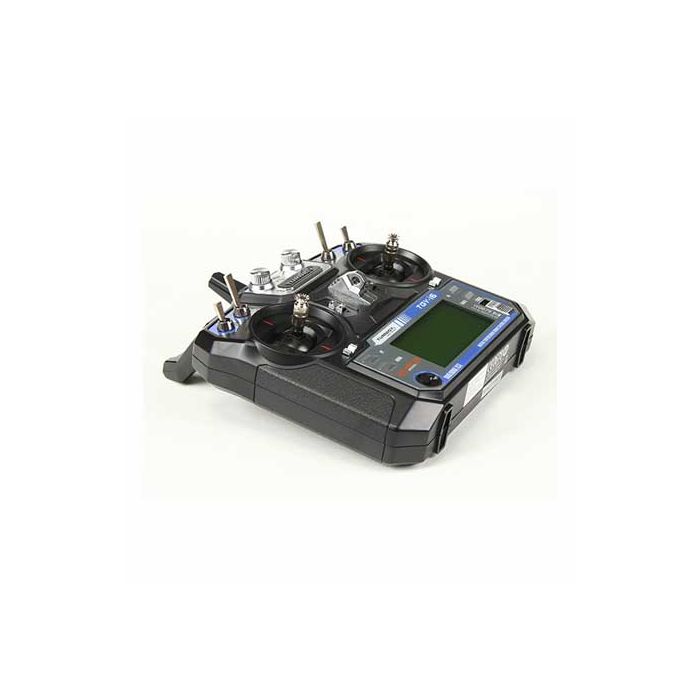

Turnigy 6-Channel Transmitter and Receiver Module TGY-i6 AFHDS (Mode 2)

SKU
MD-00784
PKR11,300.00
Quantity: 0
Turnigy 6-Channel Transmitter and Receiver Module TGY-i6 AFHDS (Mode 2)

The Turnigy TGY-i6 is a great entry level 6-channel telemetry 2.4ghz computer transmitter that uses solid and reliable Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology. The Turnigy TGY-i6 has both a nice quality look and feel, while the programming is simple to use. The TGY-i6 also has an impressive list of features and includes a TGY-iA6 6-channel receiver. Suitable for both model Heli and Airplane, the Turnigy TGY-i6 is a superb budget computer radio for both new pilots and experienced pilots alike!

The ultra slim case design ergonomically fits your hands leading to less hand fatigue especially during long flights. Digital trims, backlit LCD screen, and simple programming give the TGY-i6 a modern feel with all the features you want. With a low profile antenna, the TGY-i6 is easy to store and no worries about breaking it. Adjustable length sticks, and a loop for attaching a neck strap round out the list of comfort features this radio offers. For changing flight modes or multiple flap position options, the TGY-i6 has a 3-position switch, as well as two adjustable knobs.

FEATURES:

  1. Entry level 6 channel 2.4ghz radio with telemetry capability
  2. Dual Rate/Trims/Gear/Flap/Gyro Gain Adjust/Flight Mode/Throttle Hold/Hover Pitch Switches
  3. Easy to use Programming & Navigation Buttons
  4. Supports Heli/Standard Wing/Elevon/V-Tail
  5. 20 Model Memory
  6. 8 Character Model Name
  7. Trainer and charging ports
  8. Backlit LCD Screen displays real time transmitter and receiver voltage
  9. 4 Stick Mode Selectable
  10. Optional telemetry receivers and sensors available separately

SPECIFICATIONS:

Turnigy TGY-i6 Transmitter Specs:

  1. Frequency: 2.4ghz ISM Frequency Range
  2. Modulation: GFSK
  3. Spread Spectrum Mode: AFHDS 2A and AFHDS
  4. Band: 142
  5. Number of Frequency Channels: 20
  6. Output Power: <=20dbm
  7. Working Current: <=100mA
  8. Working Voltage: 1.5v x 4 AA
  9. Dimensions: 174x89x190mm
  10. Resolution: 1024 bit
  11. Stick Mode: Mode 2 (Throttle Left)

Turnigy iA6 Receiver Specs:

  1. Channel: 6
  2. Frequency: 2.4g ISM Frequency Range
  3. Power: 4.5V~6.6V/<30ma
  4. Dimensions: 40.4x21.1x7.35mm

RELATED DOCUMENTS:

  1. Datasheet.

PACKAGE INCLUDES:

  1. 1 X Turnigy 6-Channel Transmitter and Receiver Module TGY-i6 AFHDS (Mode 2)
Part Number NA
Weight (KG) 0.880000
Manufacturer Turnigy
Voltage (Min) 1.5V
Voltage (Max) 6.6V
Power NA
Current (A) 30m
Frequency 2.4 GHz
Output Type NA
Range 2.4ghz ISM Frequency Range
Temperature Range (Min) -40°C
Measurement Time NA
Sensor Type NA
Baud Rate NA
Interface NA
Diameter NA
Size (mm) NA
