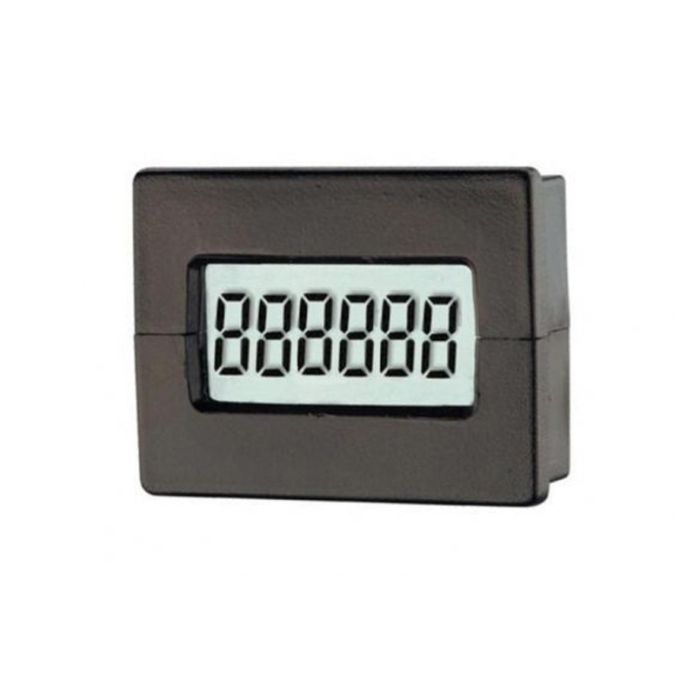

Trumeter 7000 LCD Counter Module
SKU
MD-00206
PKRĀ 3,200.00
The 7000/7000AS can also be configured to count electro-mechanical contact closure events using an external resistor and capacitor to eliminate contact bounce. Similarly the supply voltage can be increased using an external resistor and 3V zener diode.
š¦ Pre-Order Queue:
0 Units
ā Available on Backorder (In 15-30 business days)
- Buy 10 for PKRĀ 3,040.00 each and save 5%
- Buy 25 for PKRĀ 2,940.00 each and save 8%
- Buy 50 for PKRĀ 2,880.00 each and save 10%
Categories: Components, LCDs
Miniature, 6 digit LCD PCB mount totalising counter designed for minimal power requirement. These miniature 6 digit totalising counters are suitable for either direct PCB mounting, or panel mounting with bezel supplied.
FEATURES:
- Uses the latest CMOS circuitry to achieve quiescent current consumption of less than 5µA
- 6mm black character high contrast LCD display
- Bi-directional counting (7000AS model)
- Counts pulses up to 10kHz frequency
- External reset input
SPECIFICATIONS:
- Count Input: 10kHz maximum, negative edge triggered, 0.7V threshold, 50µS minimum pulse length, TTL/CMOS Compatible
- Reset Input: Negative edge triggered, 0.7V threshold, 15mS minimum pulse length, TTL/CMOS Compatible
- Direction Input: Add=logic 1, Subtract=logic 0 (0V)
- Operating Temp: -10°C to +60°C
- Storage Temp: -10°C to +60°C
- Material: Clear polycarbonate
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X Trumeter 7000 LCD Counter Module
| Weight (KG) | 0.025000 |
|---|---|
| Manufacturer | NA / Unknown |
| Operating System | NA |
| Structure | NA |
