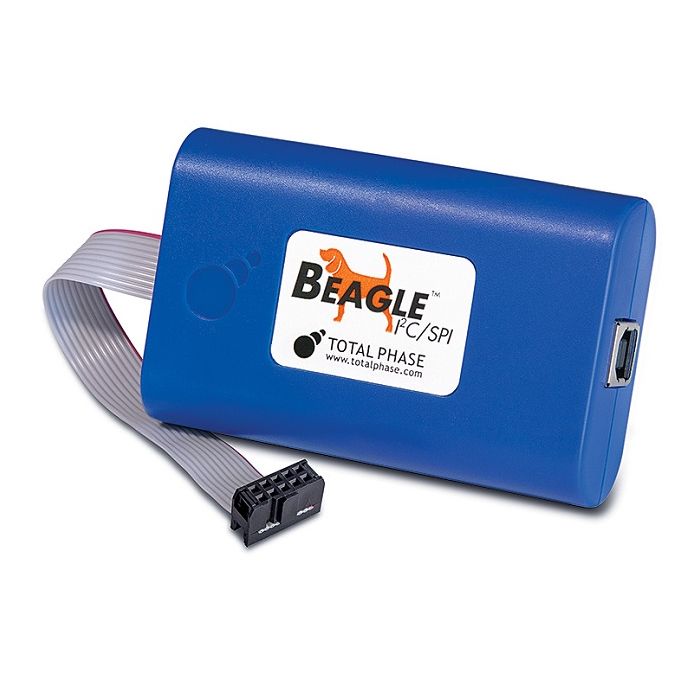

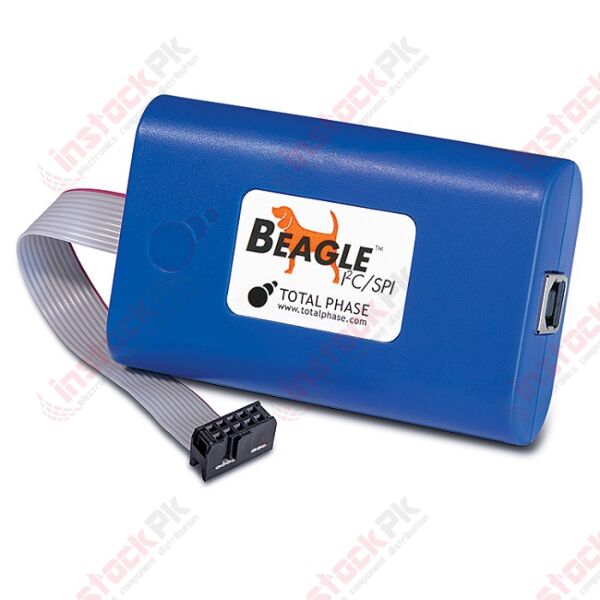

Total Phase: BEAGLE I2C/SPI Protocol Analyzer - TP320121

SKU
MD-01843
PKR94,500.00
Quantity: 0
The versatile Beagle™ I2C/SPI Protocol Analyzer is the ideal tool for the embedded engineer who is developing an I2C, SPI, or MDIO based product. The Beagle analyzer provides a high performance bus monitoring solution in a small, portable package. Perfect for engineers in the field and in the lab.

Overview

  • Non-intrusively monitor I2C up to 4 MHz
  • Non-intrusively monitor SPI up to 24 MHz
  • Non-intrusively monitor MDIO up to 2.5 MHz (Clause 22 and Clause 45)
  • Real-Time Data Capture and Display - Watch I2C, and SPI packets as they occur on the bus.
  • Bit-level timing down to 20 ns resolution.
  • Fully Windows, Linux, and Mac OS X compatible
  • Includes full function monitoring tools
  • Low Cost

Actual SPI capture performance is dependent on CPU speed and SPI bus throughput. 24 MHz SPI capture has been tested for typical applications (e.g., captures of a few hundred SPI packets). Depending on user configuration, the maximum achievable capture throughput for continuous streaming applications may be less than 24 MHz.

MDIO monitoring is available in the current versions of the API and version 2.20 of Data Center, which can be downloaded from the Data Center Product Downloads section.

Features:

  • Non-intrusively monitor I2C up to 2 MHz
  • Non-intrusively monitor SPI up to 24 MHz
  • Real-Time Data Capture and Display - Watch I2C and SPI packets as they occur on the bus.
  • Bit-level timing down to 20 ns resolution
  • USB-powered, no power supply required
  • Bit-level timing down to 20 ns resolution
  • Free software and API available
  • Fully Windows, Linux, and Mac OS X compatible

Note: Actual SPI capture performance is dependent on CPU speed and SPI bus throughput. 24 MHz SPI capture has been tested for typical applications (e.g., captures of a few hundred SPI packets). Depending on user configuration, the maximum achievable capture throughput for continuous streaming applications may be less than 24 MHz.


What is Included

  • Beagle I2C/SPI Protocol Analyzer unit
  • (1) 6 foot USB A->B cable
  • Software (downloadable from website):
    • Windows USB Drivers
    • Linux USB Hot Plug Configuration files
    • Data Center Software
    • Beagle LabVIEW Driver
    • Beagle Software API
    • Rosetta Language Bindings: C/C++, C#, .NET, Python, Visual Basic
    • Examples
    • Datasheet
    • Documentation
    • User Manual
    • Quick Start Guide
    • One-Year Warranty
Part Number TP320121
Manufacturer Total Phase
Weight (KG) 0.500000
Product Availability Available on Demand
