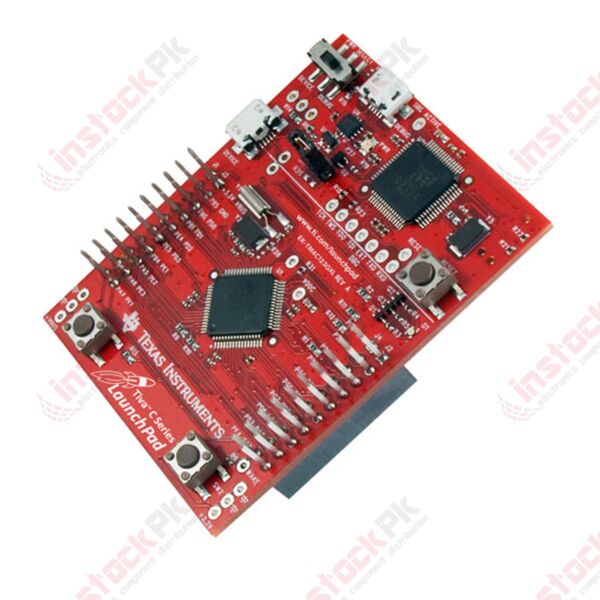

Texas Instruments: Tiva C Series LaunchPad TM4C123G Evaluation Board - EK-TM4C123GXL

The Tiva™ C Series TM4C123G LaunchPad Evaluation Board (EK-TM4C123GXL) is a low-cost evaluation platform for ARM® Cortex™-M4F-based microcontrollers. The Tiva C Series LaunchPad design highlights the TM4C123GH6PMI microcontroller USB 2.0 device interface, hibernation module, and motion control pulse-width modulator (MC PWM) module.
The Tiva C Series LaunchPad also features programmable user buttons and an RGB LED for custom applications. The stackable headers of the Tiva C Series TM4C123G LaunchPad BoosterPack XL interface demonstrate how easy it is to expand the functionality of the Tiva C Series LaunchPad when interfacing to other peripherals on many existing BoosterPack add-on boards as well as future products.

FEATURES:

1. Serial Interface (SSI) modules, supporting operation for Freescale SPI, MICROWIRE, or Texas Instruments synchronous serial interfaces; four Inter-Integrated Circuit (I²C) modules, providing Standard (100 Kbps) and Fast (400 Kbps) transmission and support for sending and receiving data as either a master or a slave
2. ARM PrimeCell 32-channel configurable μDMA controller, providing a way to offload data transfer tasks from the Cortex™-M4 processor, allowing for more efficient use of the processor and the available bus bandwidth
3. Analog support, featuring: two 12-bit Analog-to-Digital Converters (ADC) with 12 analog input channels and a sample rate of one million samples/second; two analog comparators; 16 digital comparators; on-chip voltage regulator
4. Advanced motion control, featuring: eight Pulse Width Modulation (PWM) generator blocks, each with one 16-bit counter, two PWM comparators, a PWM signal generator, a dead-band generator, and an interrupt/ADC-trigger selector; two PWM fault inputs to promote low-latency shutdown; two Quadrature Encoder Interface (QEI) modules, with position integrator to track encoder position and velocity capture using built-in timer
5. Two ARM FiRM-compliant watchdog timers; six 32-bit general-purpose timers (up to twelve 16-bit); six wide 64-bit general-purpose timers (up to twelve 32-bit); 12 16/32-bit and 12 32/64-bit Capture Compare PWM (CCP) pins
6. Up to 43 GPIOs (depending on configuration), with programmable control for GPIO interrupts and pad configuration, and highly flexible pin muxing
7. Lower-power battery-backed Hibernation module with Real-Time Clock
8. Multiple clock sources for microcontroller system clock: Precision Oscillator (PIOSC), Main Oscillator (MOSC), 32.768-kHz external oscillator for the Hibernation Module, and Internal 30-kHz Oscillator
9. Full-featured debug solution with debug access via JTAG and Serial Wire interfaces, and IEEE 1149.1-1990 compliant Test Access Port (TAP) controller
10. Industrial-range (-40°C to 85°C) RoHS-compliant 64-pin LQFP

SPECIFICATIONS:

1. 80 MHz
2. 256KB Flash
3. 32KB RAM
4. 2KB EEPROM
5. On-chip ROM with drivers and boot loaders
6. 2x 12ch 12-bit ADCs (1MSPS)
7. 16x Motion PWM channels
8. 24x Timer/Capture/Compare/PWMs
9. 3x Analog comparators
10. 3x SPI/SSI, 4x I2c, 8x UART
11. USB Host/Device/OTG

Part Number:

1.   EK-TM4C123GXL

Supply Voltage:

1. 4.75 VDC to 5.25 VDC

 RELATED DOCUMENTS:

1. Tiva C Series TM4C123G LaunchPad Evaluation Board Datasheet

PACKAGE INCLUDES:

1. 1 X Tiva C Series LaunchPad Evaluation Board TM4C123G
2. USB Micro Power Cable(power/ICDI)
