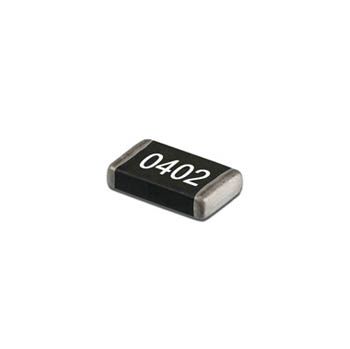

Thick Film Resistor 10KΩ 1/10W (SMD-0402)

SKU
MD-00731
main product photo
Panasonic
PKR10.00
Quantity: 4820
Thick Film Resistor 10KΩ 1/10W (SMD-0402)
  • Buy 100 for PKR9.50 each and save 5%
  • Buy 500 for PKR9.20 each and save 8%
  • Buy 1000 for PKR9.00 each and save 10%
Notify me when the price drops
Categories: Components, Resistors, Electronics Parts

SPECIFICATIONS:

  1. Resistance: 10 kOhms
  2. Tolerance: 5 %
  3. Power Rating: 100 mW
  4. Temperature Coefficient: 200 PPM / C
  5. Voltage Rating: 50 V
  6. Operating Temperature Range: - 55 C to + 155 C
  7. Type:   Thick Film Resistors SMD
  8. Height: 0.35 mm
  9. Length: 1 mm
  10. Package / Case: 0402 (1005 metric)
  11. Termination Style:       SMD/SMT
  12. Width:  0.5 mm

RELATED DOCUMENTS:

  1. Datasheet.

PACKAGE INCLUDES:

  1. 1 X Thick Film Resistor 10KΩ 1/10W (SMD-0402)
Part Number NA
Weight (KG) 0.000080
Manufacturer Panasonic
Resistance Value (Ohm) 10K Ohm
Power Rating 0.1W (1/10W)
Tolerance 5%
Temperature Range (Min) -55°C
Temperature Range (Max) 155°C
SMD_Package SMD/SMT-0402
Length 1mm
