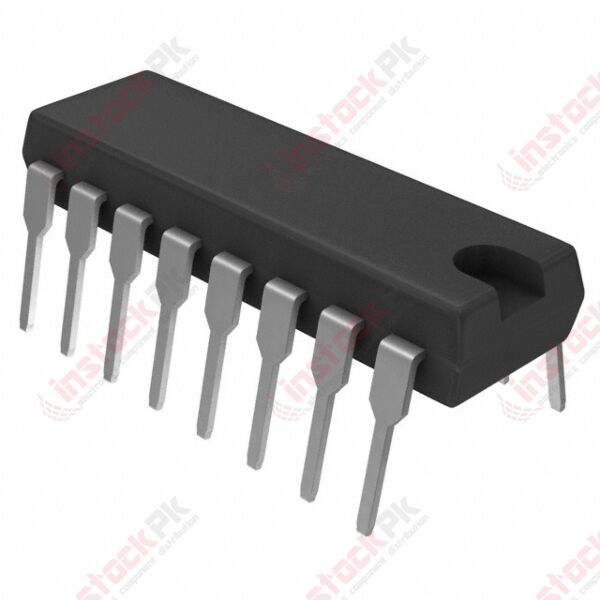

Texas: SN74LS123N Dual Retriggerable Monostable Multivibrator IC (PDIP-16)
SKU
MD-02337
PKR 50.00
High-performance Dual Retriggerable Monostable Multivibrator IC in a 16-pin through-hole PDIP package. Features customizable output pulse widths using external R-C networks. Excellent for edge-triggered delay circuits, pulse shaping, and clock watchdog functions.
⚡ Real-Time Stock:
360 Units
✔ In Stock & Ready to Ship
- Buy 3 for PKR 47.50 each and save 5%
- Buy 10 for PKR 46.00 each and save 8%
- Buy 50 for PKR 42.50 each and save 15%
Category: Other
The SN74LS123N is a high-speed, dual-channel Low-Power Schottky (LS) TTL logic integrated circuit engineered for flexible output timing control. Because it is fully retriggerable, an incoming trigger edge updates the timing cycle while the output pulse is active, allowing the output duration to be extended indefinitely up to a 100% duty cycle.
The baseline pulse length is programmed externally via a linked Resistor-Capacitor (R-C) layout. It provides both active-low (A) and active-high (B) gated inputs for versatile edge triggering, alongside an overriding Clear line to terminate output bursts instantly. Built-in Schmitt-trigger circuitry on the input lines ensures clean switching and excellent noise immunity, making it an essential component for digital timing networks and legacy industrial repair.
Technical Specifications
| Attribute | Specification Value |
|---|---|
| Logic Family / Type | LS TTL / Monostable Multivibrator |
| Number of Channels | 2 Independent Circuits (Dual) |
| Operating Supply Voltage | 4.75 V to 5.25 V (5V Nominal) |
| Output Type | Complementary Outputs (Q and /Q) |
| Trigger Mechanism | Edge-Triggered (Active-High or Active-Low) |
| Average Propagation Delay | ~23 ns |
| Technology | Low-Power Schottky (LS) |
| RoHS Status | RoHS Compliant / Lead-Free |
Key Applications to Highlight
- Timing & Delay Control: Introducing precise propagation delays to synchronize high-speed digital state machines.
- Missing Pulse Detectors: Acting as a system watchdog by continually retriggering before the output pulse window closes.
- Pulse Shapers: Cleaning up noisy, jagged, or slow-rising input waveforms into crisp rectangular clock cycles.
- Legacy System Repair: Directly replacing damaged components in arcade boards, older computers, and industrial control consoles.
| Part Number | SN74LS123N |
|---|---|
| Manufacturer | Texas Instrument |
| Weight (KG) | 0.010000 |
| Material | NA |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
