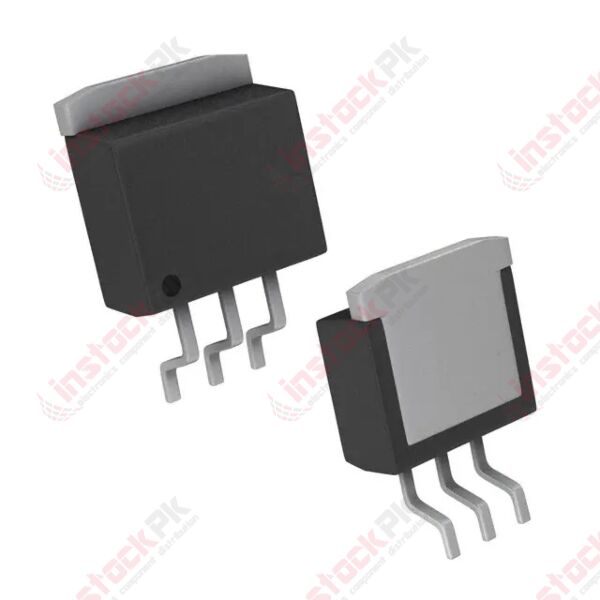

Texas: Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A DDPAK/TO-263-3 - LM1086ISX-3.3/NOPB
SKU
MD-01877
Category: Voltage Regulator
|
Product Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Fixed
|
|
|
Number of Regulators
|
1
|
|
|
Voltage - Input (Max)
|
27V
|
|
|
Voltage - Output (Min/Fixed)
|
3.3V
|
|
|
Voltage - Output (Max)
|
-
|
|
|
Voltage Dropout (Max)
|
1.5V @ 1.5A
|
|
|
Current - Output
|
1.5A
|
|
|
Current - Quiescent (Iq)
|
5 mA
|
|
|
Current - Supply (Max)
|
10 mA
|
|
|
PSRR
|
72dB (120Hz)
|
|
|
Control Features
|
-
|
|
|
Protection Features
|
Over Current, Over Temperature, Short Circuit
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
|
|
|
Supplier Device Package
|
DDPAK/TO-263-3
|
| Part Number | LM1086ISX-3.3/NOPB |
|---|---|
| Manufacturer | Texas Instrument |
| Weight (KG) | 0.010000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
