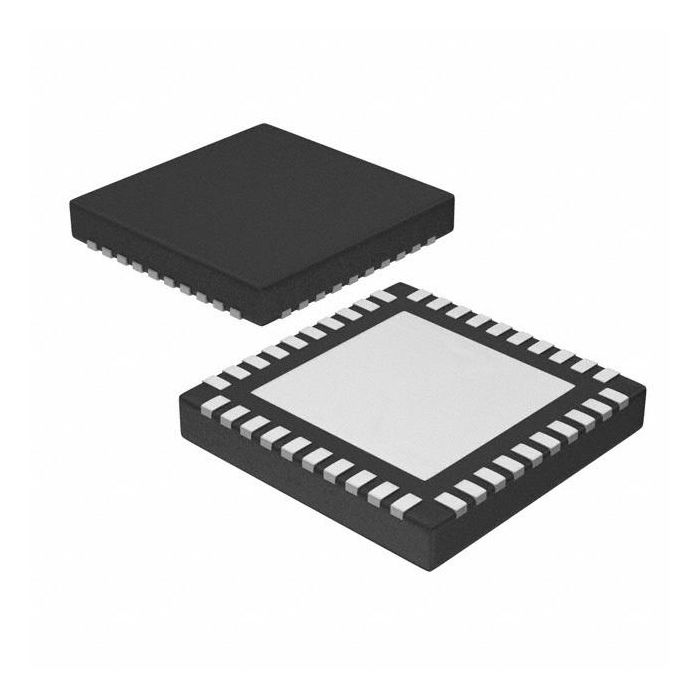

Texas Instruments - RF Transceiver, Zigbee, 2.394GHz to 2.507GHz - CC2530F256RHAR
SKU
MD-01240
PKR1,680.00
Quantity: 3
The CC2530F256RHAR is a second generation true System-on-chip (SoC) solution for IEEE 802.15.4, ZigBee and RF4CE applications. It enables robust ...
- Buy 3 for PKR1,596.00 each and save 5%
Category: Integrated Circuit
| Product Attributes | Select All |
| Categories | RF/IF and RFID |
|---|---|
| RF Transceiver ICs | |
| Manufacturer | Texas Instruments |
| Series | - |
Packaging  |
Cut Tape (CT) |
| Part Status | Active |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4 |
| Protocol | Zigbee® |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate (Max) | 250kbps |
| Power - Output | 4.5dBm |
| Sensitivity | -97dBm |
| Memory Size | 256kB Flash, 8kB RAM |
| Serial Interfaces | SPI, USART |
| GPIO | 21 |
| Voltage - Supply | 2 V ~ 3.6 V |
| Current - Receiving | 20.5mA ~ 24.3mA |
| Current - Transmitting | 28.7mA ~ 33.5mA |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 40-VFQFN Exposed Pad |
| Part Number | CC2530F256RHAR |
|---|---|
| Weight (KG) | 0.001000 |
| Manufacturer | Texas Instrument |
| Product Availability | In Stock |
| Voltage (Min) | NA |
| Voltage (Max) | NA |
| Power | NA |
| Temperature Range (Min) | NA |
| Temperature Range (Max) | NA |
| Memory | NA |
| Num of Pin's | NA |
