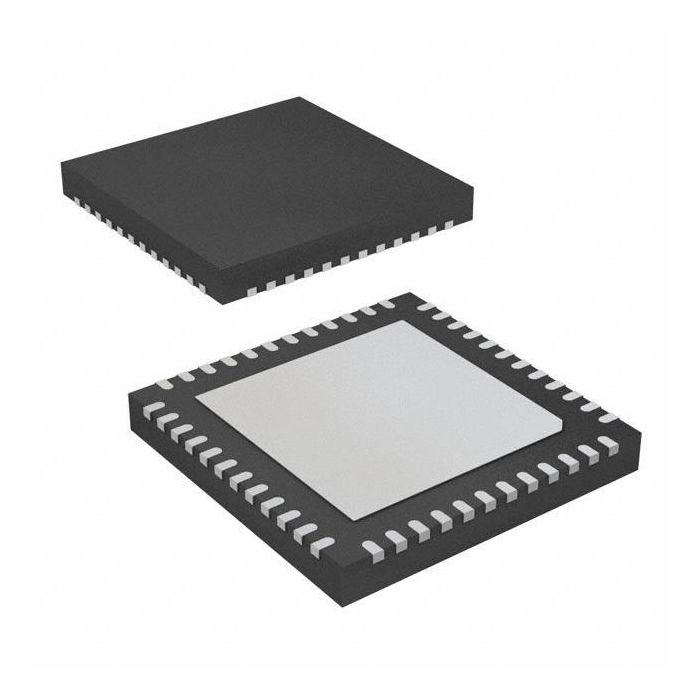

Texas Instruments - MCU Application Specific 32 Bit CC2650F128RGZT
SKU
MD-01238
PKR1,550.00
Quantity: 5
The CC2650F128RGZT is a SimpleLink multi-standard 2.4 GHz ultra-low power Wireless Microcontroller. The device contains a 32-bit ARM Cortex-M3
- Buy 3 for PKR1,210.00 each and save 22%
- Buy 10 for PKR1,150.00 each and save 26%
Category: Integrated Circuit
The CC2650F128RGZT is a SimpleLink multi-standard 2.4 GHz ultra-low power Wireless Microcontroller. The device contains a 32-bit ARM Cortex-M3 processor that runs at 48MHz as the main processor and a rich peripheral feature set that includes an unique ultralow power sensor controller. This sensor controller is ideal for interfacing external sensors and for collecting analog and digital data autonomously while the rest of the system is in sleep mode. The Bluetooth Low Energy controller and the IEEE 802.15.4 MAC are embedded into ROM and runs partly on an ARM Cortex-M0 processor. This architecture improves overall system performance and power consumption and frees up flash memory for the application.
- EEMBC CoreMark® Score - 142
- Ultralow power sensor controller
- Efficient code size architecture, placing drivers, BLE controller, IEEE 802.15.4 MAC
- All digital peripheral pins can be routed to any GPIO
- Four general-purpose timer modules
- 12-bit 200ksps ADC
- Continuous time comparator
- Ultralow power clocked comparator
- Programmable current source
- Real-time clock (RTC)
- AES-128 Security module
- True random number generator (TRNG)
- Support for eight capacitive sensing buttons
- Integrated temperature sensor
- On-chip internal DC to DC converter
- Very few external components
- Seamless integration with the simpleLink CC2590 and CC2592 range extenders
- 2.4GHz RF transceiver compatible with BLE 4.1 specification and IEEE 802.15.4 PHY and MAC
- Excellent receiver sensitivity (-97dBm for BLE), selectivity and blocking performance
- Link budget of 102dB for BLE
Applications
Wireless, Communications & Networking, Building Automation, Lighting, Consumer Electronics, Security, Medical, Sensing & Instrumentation, Computers & Computer Peripherals
| Part Number | CC2650F128RGZT |
|---|---|
| Weight (KG) | 0.001000 |
| Manufacturer | Texas Instrument |
| Voltage (Min) | NA |
| Voltage (Max) | NA |
| Power | NA |
| Temperature Range (Min) | NA |
| Temperature Range (Max) | NA |
| Memory | NA |
| Num of Pin's | NA |
