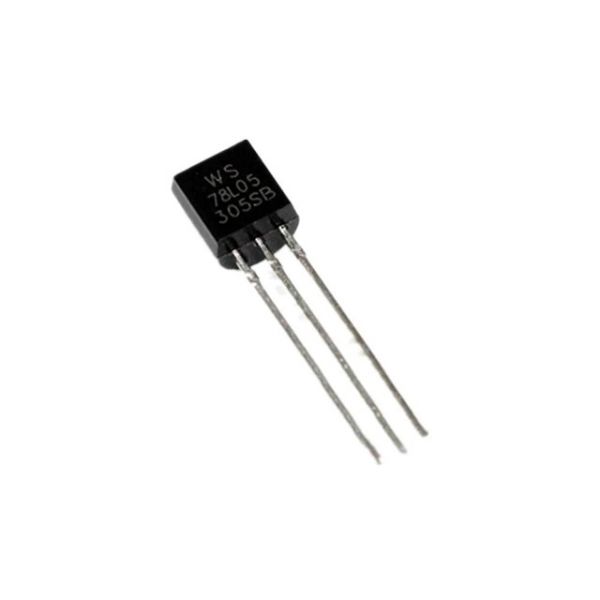

Texas Instruments: Fixed Output Linear Voltage Regulator 100mA - 78L05
SKU
IC-02076
Category: Voltage Regulator
Pin Configuration
|
Pin No. |
Pin Name |
Description |
|
1 |
Output (Vo) |
Outputs Regulated +5V |
|
2 |
Ground (Gnd) |
Connected to Ground |
|
3 |
Input (V+) |
Unregulated Input Voltage |
78L05 Regulator Features
- 5V Positive Voltage Regulator
- Output Current upto 100mA
- Maximum Input Voltage is 30V
- Operating current(IQ) is 5mA
- Internal Thermal Overload and Short circuit current limiting protection is available.
- Available in TO-92,SO-8 and SOT-89 package
| Part Number | 78L05 |
|---|---|
| Manufacturer | NA / Unknown |
| Weight (KG) | 0.010000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
