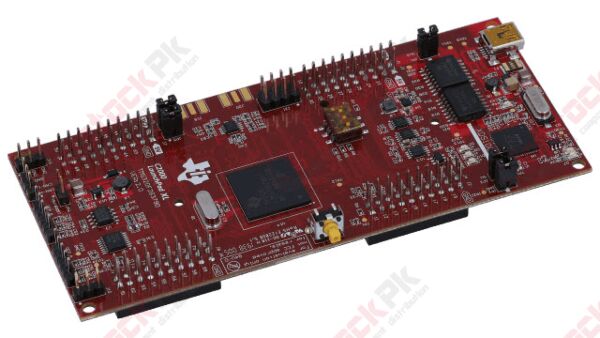

Texas Instruments: C2000 Delfino MCU F28379D LaunchPad Development Kit - LAUNCHXL-F28379D

Hardware features

• USB connected isolated XDS100v2 JTAG debug probe for real-time debug and flash programming
• 4x 20-pin headers/connectors
• Programmable buttons and LEDs
• TMS320F28379D: 200 MHz dual C28xCPUs and dual CLAs, 1 MB Flash, 16-bit/12-bit ADCs, comparators, 12-bit DACs, delta-sigma sinc filters, HRPWMs, eCAPs, eQEPs, CANs, and more
• C2000 Delfino Position Manager-ready TMS320F28379D MCU capable of interfacing to absolute encoders as well as resolvers and SINCOS transducers
• Supports two BoosterPacks
• Two encoder interface connectors
• Isolated CAN transceiver connector
• Hardware Files are in C2000Ware at boards\LaunchPads\LAUNCHXL_F28379D

Software features

• Free download of Code Composer Studio IDE
• Free download of C2000Ware for device drivers and example projects
  • DesignDRIVE platform support
  • powerSUITE software support
• MathWorks Embedded Target Support
• solidThinking Embed Support

Recommended BoosterPacks

• BOOSTXL-DRV8301
• BOOSTXL-DRV8305EVM
• BOOSTXL-BUCKCONV
• BOOSTXL-3PHGANINV
• TI BoosterPack Checker for an interactive list of compatible BoosterPacks

Get started

• For DesignDRIVE
  • controlSUITE
    • BOOSTXL-DRV8305EVM or BOOSTXL-3PHGANINV
      • Follow the documentation at: C:\ti\controlSUITE\libs\app_libs\motor_control\libs\FCL_SFRA\v01_00_00_00\Examples\FCL_SFRA_379DXL_v1\~Docs
    • BOOSTXL-POSMGR
      • Follow the documentation at: C:\ti\controlSUITE\development_kits\BOOSTXL_POSMGR
• For general device evaluation
  • Install Code Composer Studio and C2000Ware
  • Connect the LaunchPad using the included mini-USB cable to a computer
  • Open a serial terminal program of your choice (Putty, HyperTerm, etc.) and configure it to access the LaunchPad virtual COM port with 115200 Baud, 8-bit data, No parity, and single stop Bit. The COM port number can be found by opening your computer’s Device Manager
  • When connected to your computer, the LaunchPad will power up and flash the red and blue LEDs for approximately 3 seconds. After the LEDs complete flashing, the LaunchPad will enter an ADC sample mode
  • The terminal will display the latest ADC sample reading based on ADCIN14 (Pin 23 of the BoosterPack header) at a one second interval
    • If the sample is below mid-scale (1.5V/2048) the blue LED (D10) will light
    • If the sample is above mid-scale the red LED (D9) will light
  • Build and load other examples in C2000Ware
  • View and run the 1-day On-Line Workshop
  • View and run the Multi-day On-Line Workshop
  • Ask questions on the TI C2000 e2e forum

Package Includes:

• Delfino F28379D LaunchPad
• Mini USB Cable
• Quick Start Guide
