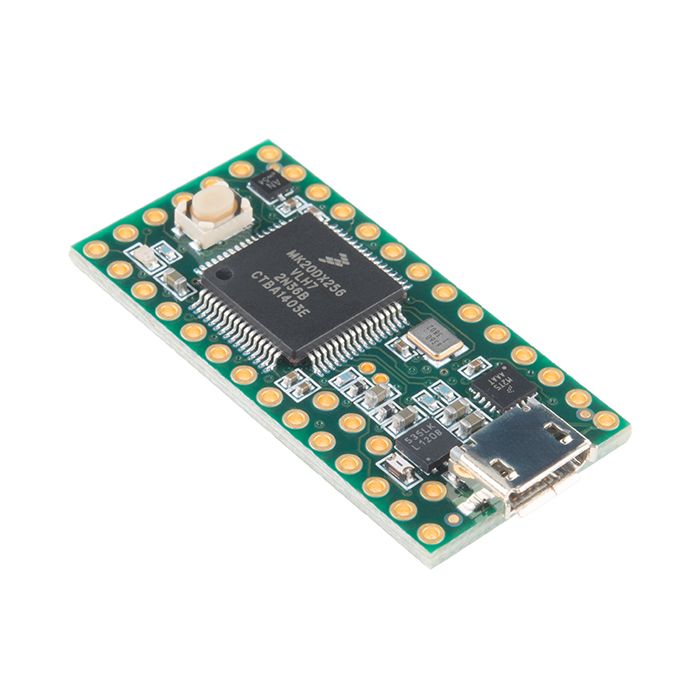

Teensy 3.2 is a small, breadboard-friendly development board designed by Paul Stoffregen and PJRC. Teensy 3.2 brings a low-cost 32 bit ARM Cortex-M4 platform to hobbyists, students and engineers, using an adapted version of the Arduino IDE (Teensyduino) or programming directly in C language. Teensy 3.2 is an upgrade over 3.1! Teensy 3.2 is a drop-in replacement upgrade for 3.1 and can run any sketches designed for 3.1.

This latest version of this complete USB-based microcontoller development system now adds a more powerful 3.3V regulator, as well as accepts a wider voltage input range. This board has the same size, shape and pinout as well as full compatibility with all shields and add-on boards made for the Teensy 3.1, plus double the Flash memory as the Teensy 3.0.

Let's get started!

Please note: Teensy 3 and 2 are not official Arduino-brand products. Although the Teensyduino IDE has been adapted so that many simple Arduino projects will work with the Teensy, there will still be a lot of libraries and shields that will not work with this device! If you're new to microcontrollers, we suggest going with a classic Arduino UNO since all Arduino projects, examples and libraries will work with it.

Once headers are installed they can be fitted into 0.6" wide sockets

Technical Specifications:

• 32 bit ARM Cortex-M4 72MHz CPU (M4 = DSP extensions) Here is Freescale's reference manual for the chip (warning 1227 pages) as well as the Datasheet and User Guide!
• 256K Flash Memory, 64K RAM, 2K EEPROM
• 21* High Resolution Analog Inputs (13 bits usable, 16 bit hardware)
• 34* Digital I/O Pins (21 shared with analog)
• 12 PWM outputs
• 1 12-bit DAC output
• 8 Timers for intervals/delays, separate from PWM
• USB with dedicated DMA memory transfers
• CAN bus
• 3 UARTs (serial ports)
• SPI, I2C, I2S, IR modulator
• I2S (for high quality audio interface)
• Real Time Clock (with user-added 32.768 crystal and battery)
• 16 general purpose DMA channels (separate from USB)
• Touch Sensor Inputs

Information, documentation and specs are on the Teensy site. Please check it out for more details!
