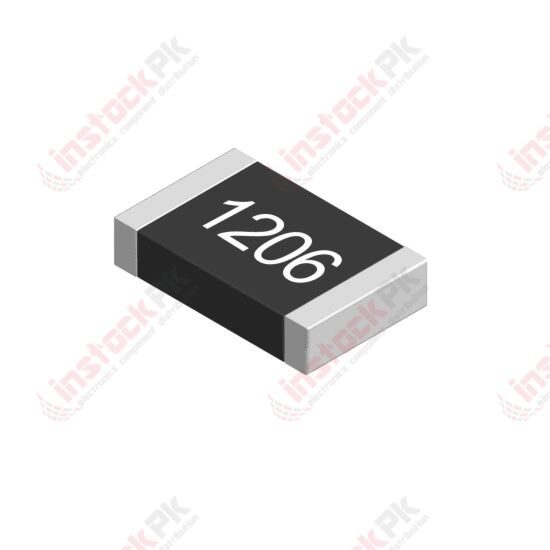

TE Connectivity: - Thick Film Resistor - SMD 1KOhm 1206 5% 1/4W 1K - CRGCQ1206J1K0
PKR 10.00
SKU
MD-01456
- Buy 25 for PKR 9.00 each and save 10%
- Buy 100 for PKR 7.50 each and save 25%
- Buy 500 for PKR 6.50 each and save 35%
Thick Film Resistors - SMD CRGCQ 1206 1K0 5% SMD ResistorThick Film Resistors - SMD CRGCQ 1206 1K0 5% SMD Resistor
Specifications
Product Attribute Attribute Value Search Similar
Manufacturer: TE Connectivity
Product Category: Thick Film Resistors - SMD
RoHS: Details
Series: CRGCQ
Resistance: 1 kOhms
Power Rating: 250 mW (1/4 W)
Tolerance: 5 %
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Voltage Rating: 200 V
Case Code - in: 1206
Case Code - mm: 3216
Application: Commercial Grade
Features: -
Packaging: Cut Tape
Packaging: Reel
Height: 0.55 mm
Length: 3.1 mm
Product: Thick Film Resistors General Purpose
Technology: Thick Film
Termination Style: SMD/SMT
Width: 1.55 mm
Brand: TE Connectivity / Holsworthy
Mounting Style: PCB Mount
Product Type: Thick Film Resistors
Factory Pack Quantity: 5000
Subcategory: Resistors
Part # Aliases: 1-2176344-9
| Part Number | CRGCQ1206J1K0 |
|---|---|
| Manufacturer | TE Connectivity |
| Weight (KG) | 0.000100 |
| Resistance Value (Ohm) | 1K Ohm |
| Power Rating | 0.25W (1.4W) |
| Tolerance | 5% |
| SMD_Package | SMD/SMT-1206 |
| Product Availability | Available on Demand |
