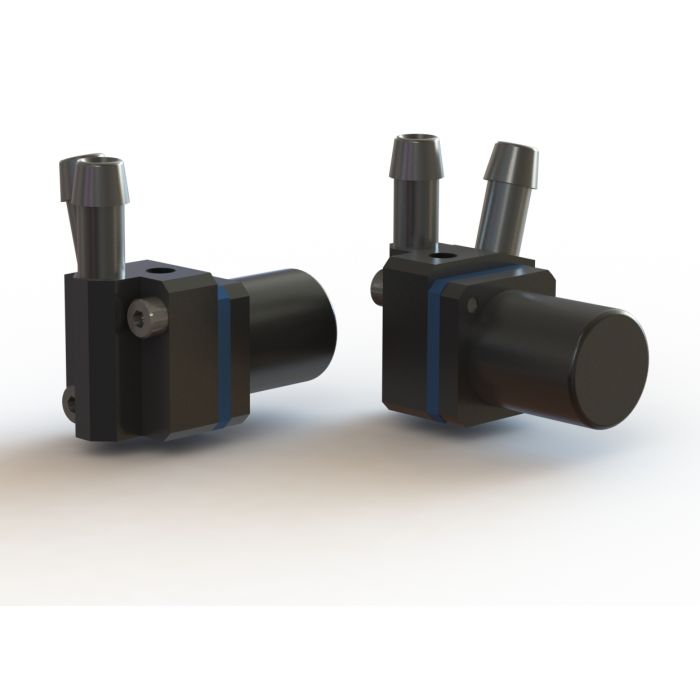

TCS Micropumps - Water Suction Pump M200 Range

SKU
MD-01063
PKR10,650.00
Quantity: 0

TCS M200 are high quality miniature pump for liquids.They arehighly efficient, small and lightweight. The solid construction and wide temperature tolerance, enable them to perform reliably even in hostile environments. Your Micropump can be quickly and easily installed into the smallest spaces, in a vast range of laboratory, prototype and production equipment.

TCS M200 are high quality miniature pump for liquids.They arehighly efficient, small and lightweight. The solid construction and wide temperature tolerance, enable them to perform reliably even in hostile environments. Your Micropump can be quickly and easily installed into the smallest spaces, in a vast range of laboratory, prototype and production equipment.

ELECTRICAL CONNECTION

Red + Positive Voltage: 4.0 v – 6. 0 v dc (Nominal 6 .0v dc)

Black–Negative

CAUTION: REVERSED OR INCORRECT CONNECTION WILL PERMANENTLY DAMAGE THE ELECTRONICS IN YOUR PUMP!

NEVER EXCEED 7.0v AS THIS WILL DAMAGE THE ELECTRONICS OF YOUR MICROPUMP!

DO NOT immerse your Micropump



Your micropump can be connected to batteries or a low voltage dc power supply > 500mA.

Note. A blue LED located on the rear of the pump flash’s when the pump is operating



Materials

Housing: Anodised Aluminium
Tubing Connectors: Stainless Steel 316
Impeller: Polyacetal
Seals: Viton



TUBING

M100P/ S-3: 2.4mm (3/32”) bore flexible tubing
M200P: 3.2mm (1/8”) bore flexible tubing
M200P-3: 3.2mm (1/8”) bore flexible tubing
  Vent port – 2.4mm (3/32”) bore flexible tubing

 Notes on Operation
The M100 and M200 series Micropumps require the pump and suction side of the fluid circuit to be filled with liquid (primed) before they can operate. The  pump will not operate correctly if any air remains within the fluid circuit.









Part Number M200-V
Manufacturer TCS Micropumps
Weight (KG) 0.100000
