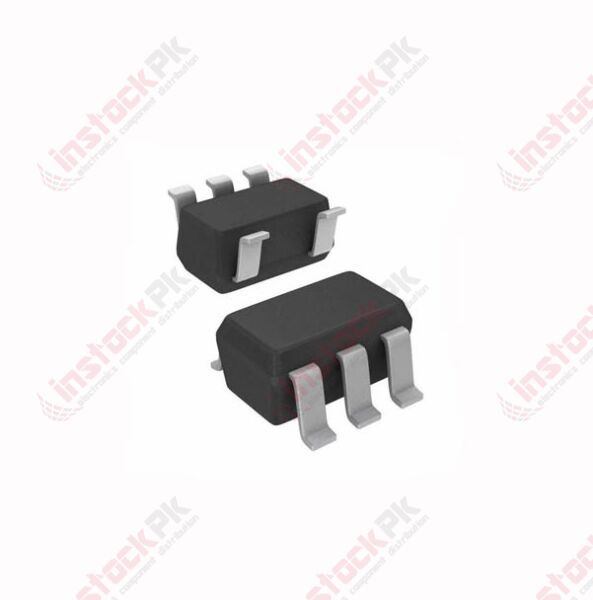

Supply Monitoring IC TPS3820-33DBVR (SOT23-5)
PKR 365.00
SKU
MD-00947
- Buy 5 for PKR 345.00 each and save 5%
- Buy 20 for PKR 335.00 each and save 8%
- Buy 50 for PKR 330.00 each and save 10%
Supply Monitoring IC TPS3820-33DBVR (SOT23-5)
SPECIFICATIONS:
- RoHS:RoHS Compliant Details
- Package / Case: SOT-23-5
- Threshold Voltage: 2.93 V
- Number of Inputs Monitored: 1 Input
- Output Type: Active-low, Push-pull
- Manual Reset:Manual Reset
- Supply Voltage - Max: 5.5 V
- Maximum Operating Temperature: + 85 C
- Minimum Operating Temperature: - 40 C
- Operating Supply Current: 15 uA
- Overvoltage Threshold: 3 V
- Power Dissipation: 437 mW
- Reset Delay Time: 25 ms
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X Supply Monitoring IC TPS3820-33DBVR (SOT23-5)
| Part Number | NA |
|---|---|
| Weight (KG) | 0.030000 |
| Manufacturer | Texas Instrument |
| Model Number | TPS3820-33DBVR |
| Voltage (Min) | NA |
| Voltage (Max) | 5.5V |
| Power | 437mW |
| Temperature Range (Min) | -40°C |
| Memory | NA |
| Num of Pin's | 5 |
| SMD_Package | SOT-23-5 |
