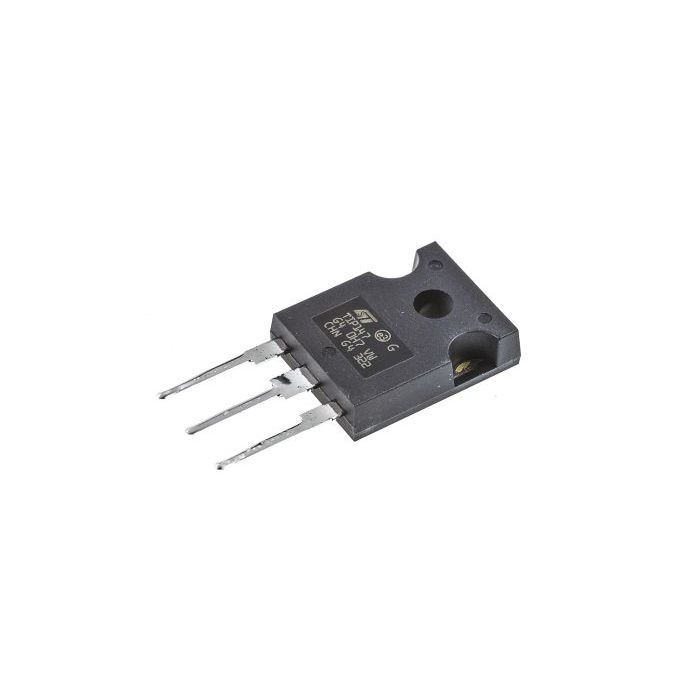

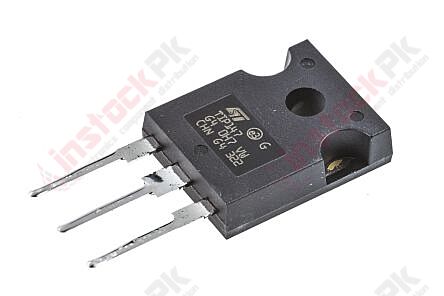

STMicroelectronics - Darlington PNP Power Transistor TIP147
PKR 350.00
SKU
MD-01156
- Buy 10 for PKR 320.00 each and save 9%
- Buy 100 for PKR 290.00 each and save 17%
- Buy 500 for PKR 220.00 each and save 37%
- Buy 1000 for PKR 202.00 each and save 42%
- Buy 2500 for PKR 185.00 each and save 47%
The devices are manufactured in planar technology with “base island” layout and monolithic Darlington configuration. The resulting transistors show exceptional high gain performance coupled with very low saturation voltage.
The devices are manufactured in planar technology with “base island” layout and monolithic Darlington configuration. The resulting transistors show exceptional high gain performance coupled with very low saturation voltage.
Key Features
- Monolithic Darlington configuration
- Integrated antiparallel collector-emitter diode
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Transistors - Bipolar (BJT) - Single | ||
| Manufacturer | STMicroelectronics | |
| Series | - | |
Packaging  |
Tube |
|
| Part Status | Active | |
| Transistor Type | PNP - Darlington | |
| Current - Collector (Ic) (Max) | 10A | |
| Voltage - Collector Emitter Breakdown (Max) | 100V | |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 10A | |
| Current - Collector Cutoff (Max) | 2mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 4V | |
| Power - Max | 125W | |
| Frequency - Transition | - | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-247-3 | |
| Supplier Device Package | TO-247 | |
| Base Part Number | TIP147 |
| Part Number | TIP147 |
|---|---|
| Weight (KG) | 0.007000 |
| Manufacturer | STMICROELECTRONICS |
| Voltage (V) | NA |
| Output Voltage | NA |
| Transistor Polarity | PNP |
