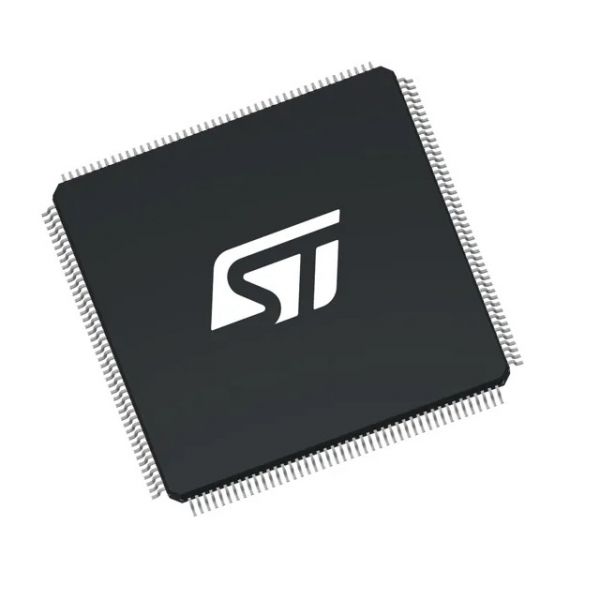

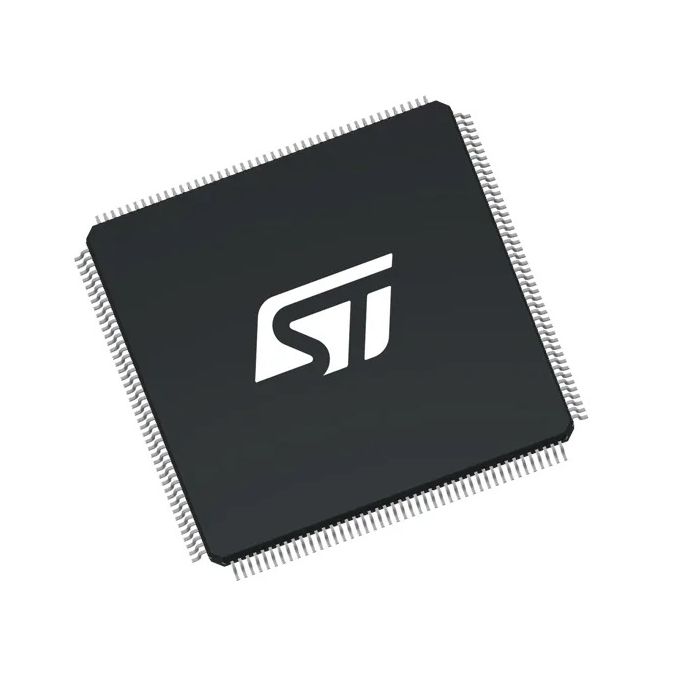

STMicroelectronics: 32Bit Arm Cortex-M7 MCU, 1MB Flash, 216 MHz CPU, Art Accelerator, L1 Cache, SDRAM, DSP with FPU - STM32F746IGT6

The STM32F745xx and STM32F746xx devices are based on the high-performance Arm^® Cortex^®-M7 32-bit RISC core operating at up to 216 MHz frequency. The Cortex^®-M7 core features a single floating point unit (SFPU) precision which supports all Arm^® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances the application security.

The STM32F745xx and STM32F746xx devices incorporate high-speed embedded memories with a flash memory up to 1 Mbytes, 320 Kbytes of SRAM (including 64 Kbytes of Data TCM RAM for critical real-time data), 16 Kbytes of instruction TCM RAM (for critical real-time routines), 4 Kbytes of backup SRAM available in the lowest power modes, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, a 32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memories access.

All the devices offer three 12-bit ADCs, two DACs, a low-power RTC, thirteen general-purpose 16-bit timers including two PWM timers for motor control and one low-power timer available in Stop mode, two general-purpose 32-bit timers, a true random number generator (RNG). They also feature standard and advanced communication interfaces.
