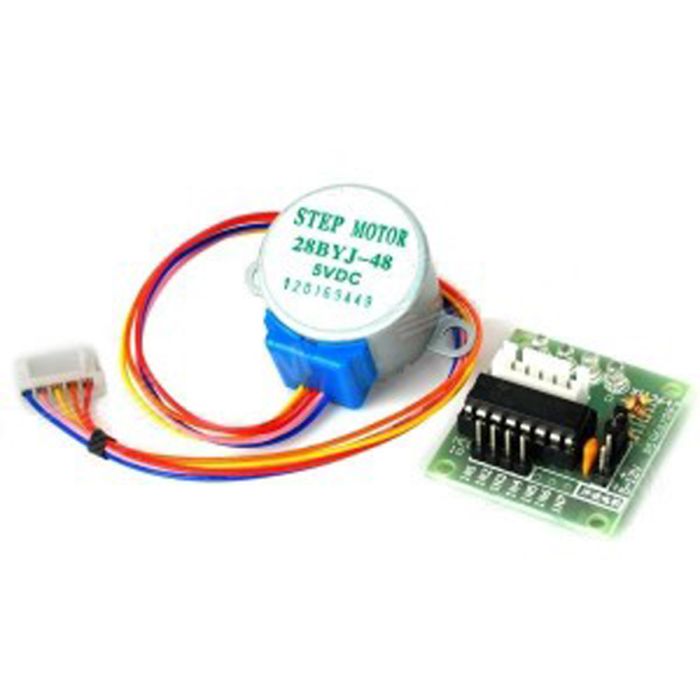

Stepper Motor 28BYJ-48 (5v) With Stepper Motor Driver Board

5V Stepper Motor 28BYJ-48 With Stepper Motor Driver Board based on ULN2003.

SPECIFICATIONS:

1. Stepper Motor Operating Voltage: 5V
2. Stepper Motor Diameter: 28mm
3. Step angle: 5.625 x 1 / 64
4. Reduction ratio: 1 / 64
5. Self-positioning torque: >34.3mN.m
6. Motor Coil DCR: 200ohm +/- 7% (25’C)
7. 5 Line 4 phase stepper motor is driven by ULN2003 chip
8. Stepper motor supports easy and direct plugin to driver board
9.  A, B, C, D four-phase LED indicators indicate the status of the stepper motor

PACKAGE INCLUDES:

1. 1 X Stepper Motor 28BYJ-48 (5v)
2. 1 X Driver Board
