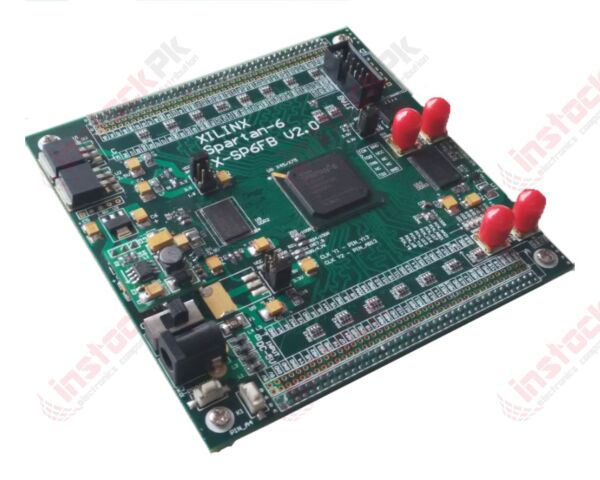

Spartan-6 XC6SLX45 X75 Xilinx X-SP6FB V2.0 FPGA Development Board

Specifications:

1. CPU : is used XC6SLX45-2FGG484C , the chip fully meet the large-scale development and application.
2. Serial configuration chip : use the M25P128 / 128MBIT capacity
3. DDR3 memory  : uses an independent work 1024M BIT / 128X2 M BYTE.
4. DDR2 memory  : uses an independent work 1024M BIT / 128X2 M BYTE.
5. Download Interface  : JTAG and SPI interfaces are two download user-friendly core board. Using JTAG debugger interface, using the SPI interface to configure SPI chip to power down to save your program.
6. Clock input  : core board onboard 100M, 27M, active clock. There are four global clock cited by SMA transposon out, user-friendly. It can be configured as two pairs of differential input and output.
7. 7.    Key 2      : core board above a global reset button , and a reconfiguration button .
8. LED light-emitting diode : core board above 8 independent LEDs, user-friendly debugging.
9. I / O ports   : users are concerned about their available I / O port problem. In addition to the core board I / O estuary opening has been used. Also it leads to a totally independent separate I / O ports more than 120. It can also be configured LVDS differential signals. PCB impedance differential pair controlled 100R. This is the other development board can not be compared. Of course, if you do not use a differential signal can also be used as general I / O port to use, support 3.3V 2.5V 1.8V level.

Package Content:

1. 1x Board.
