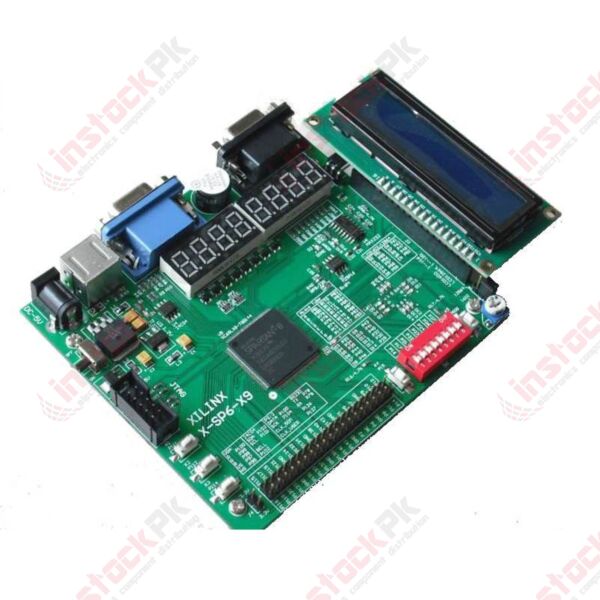

Spartan 6 FPGA Development Board – XC6SLX9-TQG144

SKU
MD-00047
-9%
Special Price PKR5,000.00 was PKR5,500.00
Quantity: 0
Spartan 6 FPGA Board provides a powerful and highly advanced self-contained development platform for designs targeting the Sixth Generation Spartan 6 FPGA from Xilinx. It features, dual-register six-input LUT logic structure, 9152 logic elements, 589,824 Bits of RAM, and a 32 bit RISC processor.
  • Buy 3 for PKR4,850.00 each and save 3%
  • Buy 10 for PKR4,720.00 each and save 6%
  • Buy 50 for PKR4,610.00 each and save 8%

Spartan 6 FPGA Board provides a powerful and highly advanced self-contained development platform for designs targeting the Sixth Generation Spartan 6 FPGA from Xilinx. It features, dual-register six-input LUT logic structure, 9152 logic elements, 589,824 Bits of RAM, and a 32 bit RISC processor.

The sixth generation in the Spartan FPGA Series enables system developers to meet demands for new features, while at the same time reducing system costs by up to half for lower-power, ”greener” products. Supporting applications such as automotive infotainment, flat-panel displays, multi-function printers, set-top boxes, home networking, and video surveillance, Spartan-6 FPGAs offer an optimal balance of low risk, low cost, low power, and high performance.

SPECIFICATIONS:

  1. Xilinx Spartan 3E FPGA (500K gates)
  2. Onboard I2C serial EEPROM 24C04 (IIC bus to do experiments)
  3. MAX232 serial communication tranceiver
  4. 50 MHz Oscillator
  5. 8x 7 Segment LED Display
  6. 12x LED light-emitting diode
  7. 5 independent keys
  8. Analog Potentio Meter (LCD Contrast Adjustment)

HARD WARE INETRFACE:

  1. 20×2 / 40 pin Standard Male Header for FPGA IO
  2. DB15HD VGA
  3. PS/2 keyboard
  4. 1x DB9 RS-232 connector
  5. 20-pin header for 16×2 Character LCD modules or 128×64 Graphic LCD module
  6. Land pattern for User Oscillator
  7. Standard 5×2 Pin JTAG Shrouded Header

RELATED DOCUMENTS:

  • XC3S500E Device Datasheet
  • Xilinx ISE webPACK software

PACKAGE INCLUDES:

  1. 1x Spartan 6 FPGA Development Board – XC6SLX9-TQG144
  2. 1x 16×2 LCD
  3. 1x LPT JTAG Programming Cable
  4. 1x USB Power Cable 5V
  5. 4xMetal Standoffs and Screws

 Note: Software will be Provide on Product Purchased

Manufacturer Xilinx
Weight (KG) 0.195000
