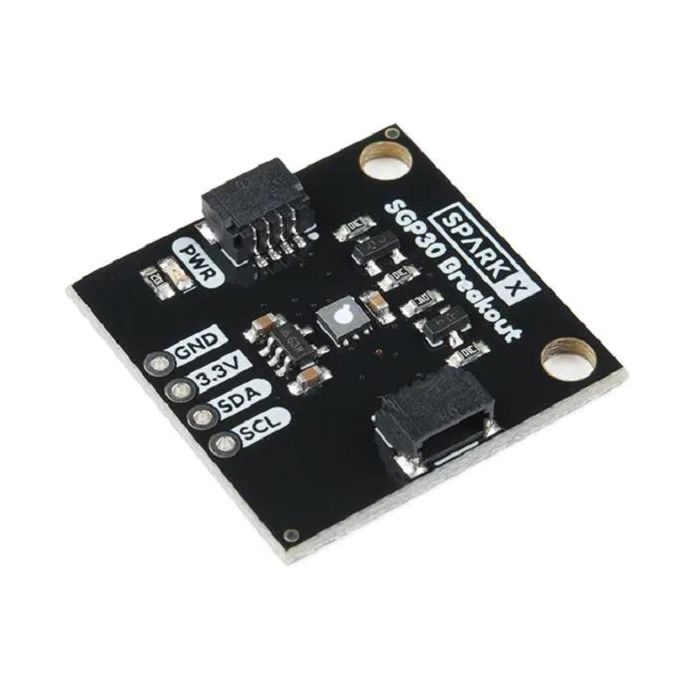

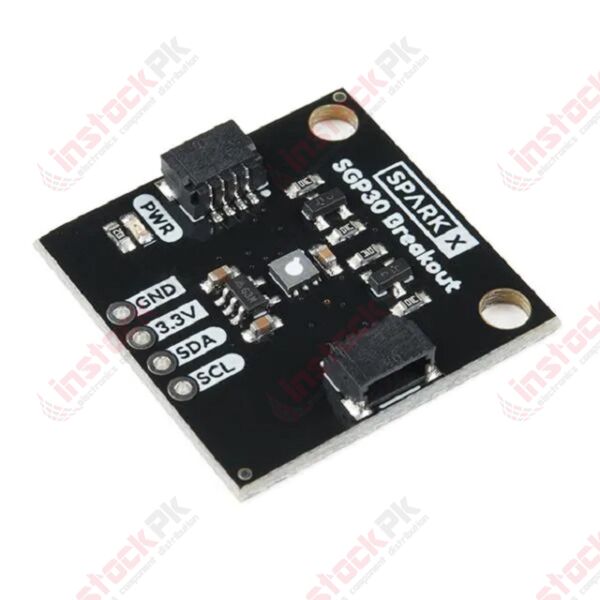

Sparkfun: SparkX Air Quality Sensor (Qwiic) Development Kit based on SGP30 - SPX-14813

The SGP30 is an indoor air quality sensor equipped with an I²C interface. It outputs equivalent CO₂ in ppm and Total Volatile Organic Compounds (TVOC) in ppb. The sensor also gives access to its raw measurement values of Ethanol and H₂.

The SGP30 boasts high stability with low long-term drift. With its continuous baseline compensation algorithm, readings stay accurate over time. You can even fine-tune your readings by interfacing with an external humidity sensor to add humidity compensation.

While the CCS811 requires a burn-in of 48 hours and a run-in of 20 minutes the SGP30 is ready to go after just 15 seconds.

Sparkfun has written an Arduino library to help you get started quickly. Search for SparkFun SGP30 in the library manager.

This board is one of our many Qwiic compatible boards! Simply plug and go. No soldering, no figuring out which is SDA or SCL, and no voltage regulation or translation required!

We do not plan to regularly produce SparkX products so get them while they’re hot!

Experimental Product: SparkX products are rapidly produced to bring you the most cutting-edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products.
