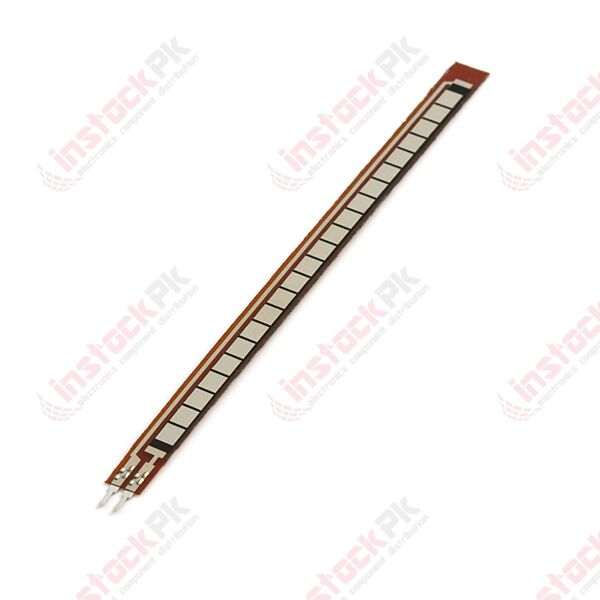

Spectra Symbol - Flex Sensor 4.5" - SEN-08606 SEN0064
SKU
MD-00363
PKR7,550.00
Quantity: 0
A simple flex sensor 4.5" in length.
- Buy 3 for PKR7,172.50 each and save 5%
- Buy 10 for PKR6,946.00 each and save 8%
Category: Sensors
A simple flex sensor 4.5" in length. As the sensor is flexed, the resistance across the sensor increases. The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).Connector is 0.1" spaced and bread board friendly.
FEATURES:
- Angle Displacement Measurement
- Bends and Flexes physically with motion device
- Simple Construction
- Low Profile
- Life Cycle: >1 million -Height: 0.43mm (0.017")
- Flat Resistance: 10K Ohms -Resistance Tolerance: ±30%
- Bend Resistance Range: 60K to 110K Ohms
PIN CONFIGURATION:
HOW TO USE:
APPLICATIONS:
- Robotics
- Gaming (Virtual Motion)
- Medical Devices
- Computer Peripherals
- Musical Instruments
- Physical Therapy
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X Sparkfun Flex Sensor 4.5"
| Part Number | SEN-08606 SEN0064 |
|---|---|
| Manufacturer | DFRobot |
| Weight (KG) | 0.001000 |
| Product Availability | In Stock |
