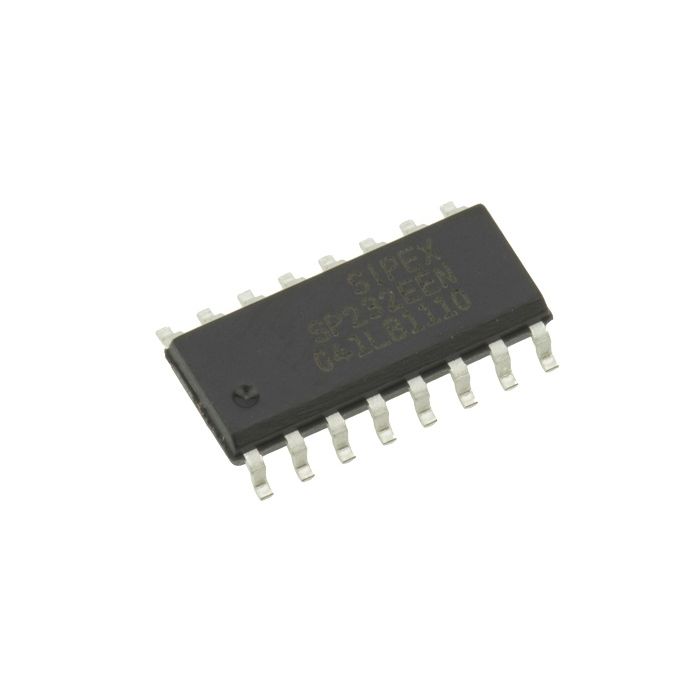

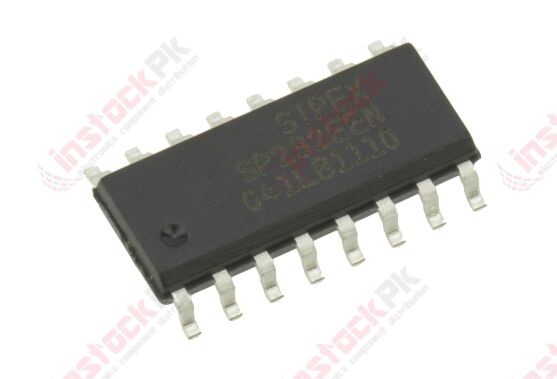

Line Drivers / Receivers SP232EEN (16 PIN NSOIC)
SKU
IC-00010
PKR75.00
Quantity: 9
The SP202E/232E/233E/310E/312E devices are a family of line driver and receiver pairs that meet the specifications of RS-232 and V.28 serial protocols with enhanced ESD performance
Category: Integrated Circuit
Operates from Single +5V Power Supply Meets All RS-232D and ITU V.28 Specifications Operates with to 10µF Capacitors High Data Rate 120Kbps Under Load Low Power Shutdown 1µA (Typical) 3-State TTL/CMOS Receiver Outputs Low Power CMOS 3mA Operation Improved ESD Specifications: ±15kV Human Body Model ±15kV IEC1000-4-2 Air Discharge ±8kV IEC1000-4-2 Contact Discharge
The SP202E/232E/233E/310E/312E devices are a family of line driver and receiver pairs that meet the specifications of RS-232 and V.28 serial protocols with enhanced ESD performance. The ESD tolerance has been improved on these devices to over ±15KV for both Human Body Model and IEC1000-4-2 Air Discharge Method. These devices are pin-to-pin compatible with Sipex's SP232A/233A/310A/312A devices as well as popular industry standards. As with the initial versions, the SP202E/232E/233E/310E/312E devices feature at least 120Kbps data rate under load, 0.1µF charge pump capacitors, and overall ruggedness for commercial applications. This family also features Sipex's BiCMOS design allowing low power operation without sacrificing performance. The series is available in plastic DIP and SOIC packages operating over the commercial and industrial temperature ranges. SELECTION TABLE
Number of RS232 Model Drivers Receivers SP310E SP312E No. of Receivers No. of External Active in Shutdown 0.1µF Capacitors Shutdown WakeUp TTL TriState No Yes No Yes No Yes
Vcc................... +6V
V+.................... to +11.0V
V-..................... -11.0V Input Voltages
TIN...................-0.3 to (Vcc +0.3V)
RIN.................. ±15V Output Voltages
TOUT............... (V+, +0.3V) to (V-, -0.3V)
ROUT.............. -0.3V to (Vcc +0.3V) Short Circuit Duration
The SP202E/232E/233E/310E/312E devices are a family of line driver and receiver pairs that meet the specifications of RS-232 and V.28 serial protocols with enhanced ESD performance. The ESD tolerance has been improved on these devices to over ±15KV for both Human Body Model and IEC1000-4-2 Air Discharge Method. These devices are pin-to-pin compatible with Sipex's SP232A/233A/310A/312A devices as well as popular industry standards. As with the initial versions, the SP202E/232E/233E/310E/312E devices feature at least 120Kbps data rate under load, 0.1µF charge pump capacitors, and overall ruggedness for commercial applications. This family also features Sipex's BiCMOS design allowing low power operation without sacrificing performance. The series is available in plastic DIP and SOIC packages operating over the commercial and industrial temperature ranges. SELECTION TABLE
Number of RS232 Model Drivers Receivers SP310E SP312E No. of Receivers No. of External Active in Shutdown 0.1µF Capacitors Shutdown WakeUp TTL TriState No Yes No Yes No Yes
Vcc................... +6V
V+.................... to +11.0V
V-..................... -11.0V Input Voltages
TIN...................-0.3 to (Vcc +0.3V)
RIN.................. ±15V Output Voltages
TOUT............... (V+, +0.3V) to (V-, -0.3V)
ROUT.............. -0.3V to (Vcc +0.3V) Short Circuit Duration
Part Number | SP232EEN |
---|---|
Manufacturer | Sipex |
Weight (KG) | 0.200000 |
