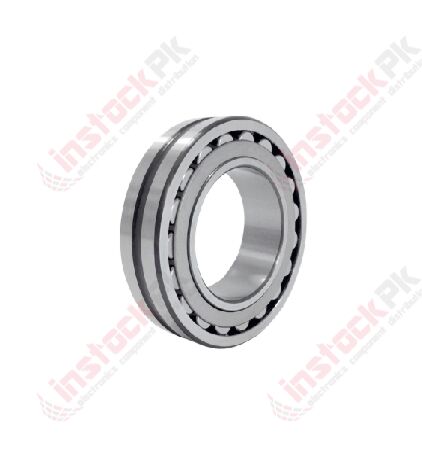

SKF Spherical Roller Bearing 22316E/C3
SKU
MD-00504
PKRĀ 19,900.00
Spherical roller bearing with cylindrical bore and annular groove with three lubrication holes in outer ring 80mm inside x 170mm outside x 58mm width.
š¦ Pre-Order Queue:
0 Units
ā Available on Backorder (In 15-30 business days)
- Buy 5 for PKRĀ 18,905.00 each and save 5%
- Buy 20 for PKRĀ 17,910.00 each and save 10%
Categories: 3D-Printers, Parts & Accessories
Spherical roller bearings are non-separable double-row radial bearings, with barrel shaped rollers. They are designed to handle high radial loads and moderate axial loads and have excellent alignment compensation. They resist seizure, maintain dimensional stability and resist wear under constant vibration, misalignment and shock loads.
FEATURES:
- Two row spherical roller bearing suitable for applications that support high radial and oscillating axial loads.
- Two-piece pressed steel window-type cage has high wear resistance and spaces the rollers for even load distribution and prevents contact to reduce friction, vibration, and noise.
- Flangeless inner ring with cage guide.
- C3 radial clearance is larger than normal for applications where impact loads and vibration are severe, or thermal expansion is a factor.
- Straight bore fits conventional cylindrical shafts.
SPECIFICATIONS:
| 223 | 16 | E | C3 | |||||
|---|---|---|---|---|---|---|---|---|
| Extra Heavy, Wide | 80mm - Bore Size | High Capacity Internal Design | Cylindrical Bore | Stamped Steel Cage | Radial Clearance Greater Than Standard | |||
| Dimensions (mm) | Weight (kg) | Brand | ||
|---|---|---|---|---|
| d | D | W | ||
| 80 | 170 | 58 | 6.6 |  |
| Basic Dynamic Load Rating (kN) | Speed Limitaions(r/min) | Fatigue Load Limit (kN) | ||
|---|---|---|---|---|
| Dynamic | Static | Reference Speed | Limiting Speed | |
| 490 | 540 | 3000 | 4000 | 54 |
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X SKF Spherical Roller Bearing 22316E/C3
| Weight (KG) | 0.020000 |
|---|---|
| Manufacturer | SKF |
| Voltage (V) | NA |
| Power | NA |
| Material | Stainless Steel |
| Thermistor Size | NA |
| Structure | Spherical Roller Bearing |
| Nozzle Type | NA |
| Shaft Bore Size | 80mm |
| Diameter | 80mm inside x 170mm outside x 58mm width. |
| Size (mm) | NA |
