Silicon Labs: Z-Wave 800 Transcever Development Kit - ZGM230-DK2603A
SKU
MD-02213
Category: Wireless & Networking Module

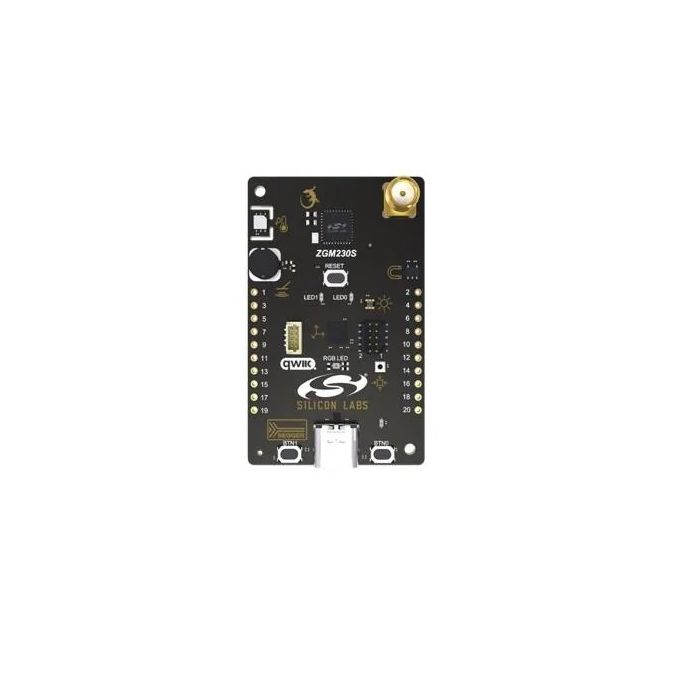

ZGM230-DK2603A is a Z-Wave ZGM230S SiP module-based development kit. It is a feature-rich, cost-effective, small form factor prototype and development platform for Z-Wave. It is an ideal platform for developing energy-friendly and secure connected IoT devices using Z-Wave mesh and Z-Wave Long Range. It ships with Unify SDK Z-Wave protocol controller that works with any Z-Wave end devices. Customers can develop wide range command, control, and monitoring applications utilizing numerous sensors, buttons, and LEDs on this board. A built in SEGGER J-Link debugger ensures easy debugging through the USB Type-C connector.
Kit Features
- Sensors
- Temperature and Humidity sensor
- Ambient light sensor
- LESENSE metal detector LC-sensor
- Pressure sensor
- Hall effect sensor
- 9-axis inertial sensor
- User Interface
- 2x Buttons (w/ EM2 wake-up)
- 2x LEDs
- 1x RGB LED
- On-board Debugger
- J-Link Pro
- Packet Trace (PTI) over UART
- Virtual COM with HW Flow Control
- Power-save Features
- Controllable and separate power domain(s) for sensors
- Expansion headers for easy I/O access
Kit Contents
- BRD2603A - ZGM230s +14 dBm Dev Kit Board
- ANT SS900 - 868-915 MHz Antenna
| Part Number | ZGM230-DK2603A |
|---|---|
| Weight (KG) | 0.100000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
