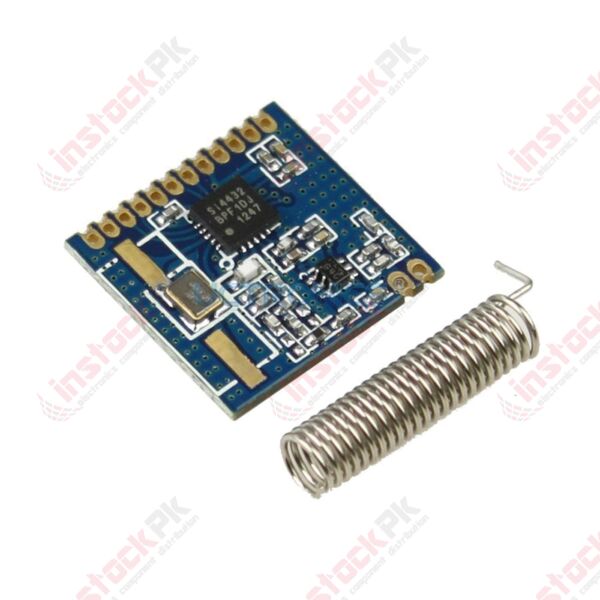

SI4432 433M transceiver module Distance (1500M)

Specifications:

1) Ultra-thin ultra-small (16.5 × 17mm)
2) Good harmonics too easy to FCC / CE certification
3) The penetration ability (measured through 8 floors)
4) Using the latest version of the U.S. SI4432 IC, stable performance

Features:

1) Frequency range: 433.92M
2) Sensitivity up to-121dBm
3) Maximum output power: 20dBm
4) Ddata transfer rate:0.123-256kbps
5) FSK, GFSK and OOK modulation
6) Power supply: 1.8-3.6 V
7) Ultra-low-consumption shutdown mode
8) Digital received signal strength indication (RSSI)
9) Wake time
10) Automatic matching and two-way antenna switch control
11) Configurable packet structure
12) Preamble detection
13) 64-byte send and receive data register (FIFO)
14) Low power detection
15) 8-bit ADC and temperature sensor
16) Operating temperature range: -20 ~ +60 ° C
17) Integrated voltage regulator
18) Frequency hopping
19) Power-on reset function
20) Built-in lens adjustment

Applications:

1) Remote Control
2) Remote meter reading
3) Home security alarm and remote keyless entry
4) Industrial Control
5) Telemetry Home Automation
6) Personal data records
7) Toy Control
8) Sensor networks
9) Tire pressure monitoring
10) Health Monitoring
11) Wireless PC peripherals

Pin Definitions:

1......GND...... N/A
2......GPIO0......Internal has connected the emission control module feet
3......GPIO1......Internal has connected the receiving control module feet
4......GPIO2......Connect the the chip GPIO2 pins directly
5......VCC...... Connect power positive 3.3 V
6......SDO...... 0 ~ VDDV digital output, provide the internal control of the register serial back to read function
7......SDI ......Serial data input. 0 ~ VDD V digital input. The pins for the 4 wire serial data serial data flow bus.
8......SCLK......A serial clock input. 0 ~ VDDV digital input. The pins provides the 4 wire serial data clock function
9......nSEL......Serial interface choice input pins. 0 ~ VDDV digital input.The pins for the 4 wire serial data bus provides the choice/make can function, this signal is used to indicate a read/write mode.
10......nIRQ......Interrupt output pins
11......SDN......Close input pins. 0 ~ VDDV digital input. In addition to shut down all the mode mode SDN = 0. When SDN = 1 chip will be completely shut down and the content of the register will be lost.v 12......GND......N/A
13......ANT......Pick up the coaxial antenna 50
14......GND......N/A
