Senring: H2056 Series Mini Through Hole Slip Ring - H2056-0210-16S
SKU
MD-01829
PKR0.00
Quantity: 0

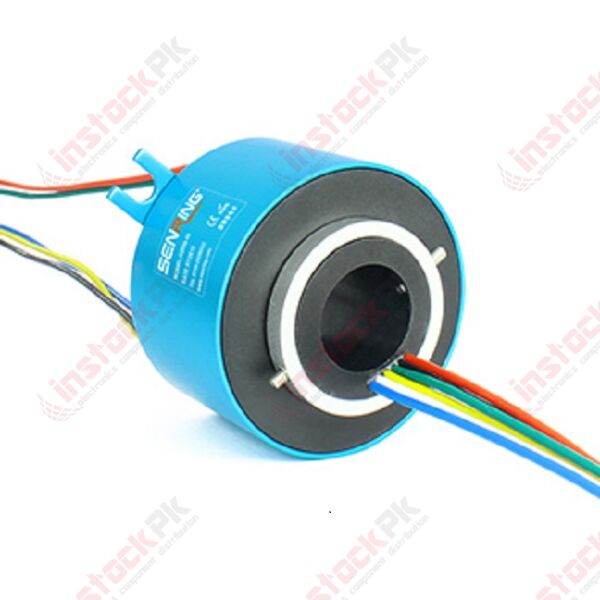

H2056 series is mini hole size through bore slip ring , hole size 20mm(suitable for shaft≤20mm),OD 56mm。It can stably transmit 2~24 circuits power@10A or 2~48 circuits signal@2A and applied to any devices where requires to transmit power and signals when
Category: Connectors
-
Features
- Advanced multi-point contact brush technology ensures reliable contact with low friction;
- Standard model supports 2~24 circuits power@10A or 2~48 circuits signal@2A,current and channels can be customized;
- Can be customized to combine power/signal transmitting
- Support transmitting power with signals ;
- Integrated structure design, easy installation.
Part no. description
![h2056 series H2056 Series Mini Through Hole Slip Ring slip ring description](https://www.senring.com/images/xhsm/h2056.gif)
Drawing
![h2056 series H2056 Series Mini Through Hole Slip Ring slip ring Drawing](https://www.senring.com/images/draw/h2056.gif)
Standard model list
model | circuits | Length L(mm) | model | circuits | Length L(mm) | ||
10A | signal or 0-5A | 10A | signal or 0-5A | ||||
H2056-02S | 0 | 2 | 34 | H2056-1010-08S | 10 | 8 | 68.5 |
H2056-0210 | 2 | 0 | 34 | H2056-1210 | 12 | 0 | 68.5 |
H2056-03S | 0 | 3 | 34 | H2056-1410-04S | 14 | 4 | 68.5 |
H2056-0310 | 3 | 0 | 34 | H2056-1610-02S | 16 | 2 | 68.5 |
H2056-06S | 0 | 6 | 34 | H2056-24S | 0 | 24 | 85.5 |
H2056-0210-04S | 2 | 4 | 34 | H2056-0410-20S | 4 | 20 | 85.5 |
H2056-0410-02S | 4 | 2 | 34 | H2056-0610-18S | 6 | 18 | 85.5 |
H2056-0610 | 6 | 0 | 34 | H2056-1210-12S | 12 | 12 | 85.5 |
H2056-12S | 0 | 12 | 52 | H2056-1810-06S | 18 | 6 | 85.5 |
H2056-0210-10S | 2 | 10 | 52 | H2056-2410 | 24 | 0 | 85.5 |
H2056-0310-09S | 3 | 9 | 52 | H2056-30S | 0 | 30 | 101 |
H2056-0610-06S | 6 | 6 | 52 | H2056-0210-28S | 2 | 28 | 101 |
H2056-0810-04S | 8 | 4 | 52 | H2056-0410-26S | 4 | 26 | 101 |
H2056-1010-02S | 10 | 2 | 52 | H2056-0610-24S | 6 | 24 | 101 |
H2056-1210 | 12 | 0 | 52 | H2056-36S | 0 | 36 | 119 |
H2056-18S | 0 | 18 | 68.5 | H2056-0410-32S | 4 | 32 | 119 |
H2056-0210-16S | 2 | 16 | 68.5 | H2056-0610-30S | 6 | 30 | 119 |
H2056-0410-14S | 4 | 14 | 68.4 | H2056-42S | 0 | 42 | 137 |
H2056-0610-12S | 6 | 12 | 68.5 | H2056-0410-38S | 4 | 38 | 137 |
H2056-0810-10S | 8 | 10 | 68.5 | H2056-48S | 0 | 48 | 153 |
* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.
Technical Specification of h2056 series slip ring
Mechanicall parameters | |
Working Life | refer to slip ring grade table |
Rotating speed | refer to slip ring grade table |
Working Temp. | -30°C~80°C |
Work Humidity | 0~85% RH |
Contact Material | refer to slip ring grade table |
Housing Material | AL alloy |
Torque | 0.05N.m+0.02N.m/6 wire |
IP Grade | IP51 |
Electrical parameters | ||
Spec. | Power | Signal |
Voltage Range | 0~600VAC/VDC | 0~440VAC/VDC |
Insolution Resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
Lead wire Spec. | AWG17# Silver-plated teflon | AWG22# Silver-plated teflon |
lead wire length | standard length 300mm(can be customized) | |
Dielectric Strength | 800VAC@50Hz,60s | |
Electrical Noise | < 0.01Ω |
h2056 Grade Table
Grade code | Max rotating speed | Working Life | Contact Material |
C(Standard) | 400RPM | 20 millions revolutions | precious metal |
D(Industrical) | 800RPM | 60 millions revolutions | precious metal |
H(High Quality) | 1200RPM | 150 millions revolutions | gold alloy |
Part Number | H2056-0210-16S |
---|---|
Manufacturer | SENRING Electronics Co.,Limited |
Packing Unit | 1 Piece |
Product Availability | Available on Demand |
