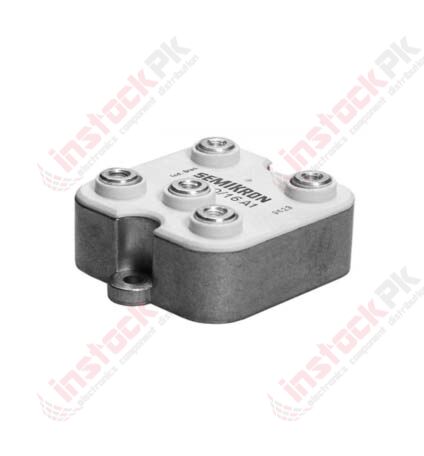

Semikron Power Bridge Rectifier SKD-30/12 A1

SKU
MD-00672
PKR2,500.00
Quantity: 0
Semikron Power Bridge Rectifier SKD-30/12 A1
  • Buy 5 for PKR2,375.00 each and save 5%
  • Buy 20 for PKR2,300.00 each and save 8%
  • Buy 50 for PKR2,250.00 each and save 10%

FEATURES:

  1. Isolated metal case with screw terminals
  2. Blocking voltage up to 1600 V
  3. High surge currents
  4. Easy chassis mounting
  5. UL recognized, file no. E 63 532

RELATED DOCUMENTS:

  1. Datasheet.

APPLICATIONS:

  1. Three phase rectifiers for power supplies
  2. Input rectifiers for variable frequency drives
  3. Rectifiers for DC motor field supplies
  4. Battery charger rectifiers
  5. Recommended snubber network: RC: 0.1 µF, 50 Ω (PR = 1 W)

PACKAGE INCLUDES:

  1. 1 X Semikron Power Bridge Rectifier SKD-30/12 A1
Part Number NA
Weight (KG) 0.020000
Manufacturer SEMIKRON
Model Number SKD-30/12 A1
Voltage (Min) NA
Voltage (Max) 1200V
Power NA
Current (A) 30
Temperature Range (Min) -40°C
Temperature Range (Max) 125°C
Memory NA
Num of Pin's NA
