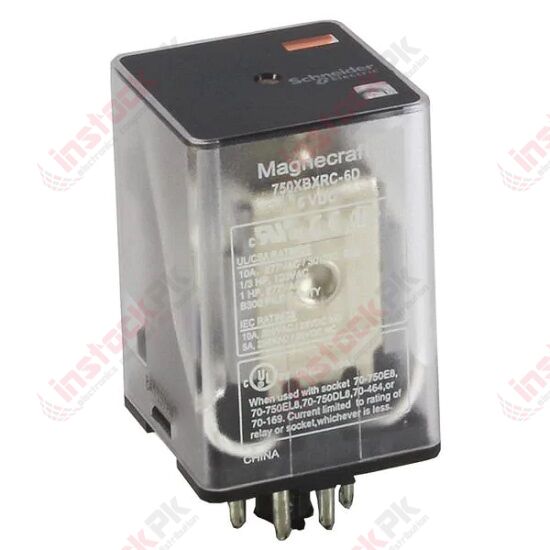

Schneider: Octal 8 Pin General Purpose Relay 24VAC, 750R, DPDT, 10A, - 750XBXRC-24A
SKU
MD01664
PKR3,550.00
Available in 15-30 Days
General purpose relay, Legacy, 750R, DPDT, 10A, 24 VAC, octal terminal 8 pins, clear cover
Category: Relays
| Product Type |
Plug-in electromechanical relay
|
|
|---|---|---|
| Rated Line Current |
10 A
|
|
| Switch Function |
DPDT
|
|
| Contact Composition |
2 NC + 2 NO
|
| Rated Operational Current |
10 A at 277 V AC (on resistive load) conforming to UL
10 A at 30 V DC (on resistive load) conforming to UL 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC |
|
|---|---|---|
| Maximum Switching Voltage |
300 V AC conforming to UL
30 V DC conforming to UL 250 V AC IEC 28 V DC conforming to IEC |
|
| Mounting Support |
plug-in
|
|
| Local Signalling |
Flag cover
|
|
| Contacts Material |
Silver alloy, gold flashed
|
|
| Rated Power in HP |
0.33 HP at 120 V AC
1 HP at 277 V AC |
|
| Connections Terminals |
Octal terminal for connector socket (8 pins)
|
|
| Control Circuit Voltage Limits |
0.85...1.1 Un AC
|
|
| Resistance |
72 Ohm
|
|
| Average Consumption |
3 VA
|
|
| Vibration Resistance |
+/- 1 mm 10…35 Hz in operation
3 gn 35…150 Hz in operation |
|
| Operating Time |
20 ms
|
|
| Drop-out Voltage Threshold |
>= 0.15 Uc AC
>= 0.1 Uc DC |
|
| Minimum Switching Current |
10 mA at 17 V DC
|
|
| Product Weight |
2.93 oz (83 g)
|
|
| Height |
2.05 in (52 mm)
|
|
| Width |
1.38 in (35 mm)
|
|
| Depth |
1.40 in (35.5 mm)
|
| Shock Resistance |
10 gn
|
|
|---|---|---|
| Ambient Air Temperature for Operation |
-40…131 °F (-40…55 °C)
|
|
| Ambient Air Temperature for Storage |
-40…185 °F (-40…85 °C)
|
|
| Product Certifications |
UL
CSA CE EAC |
|
| Dielectric Strength |
2500 V AC between coil and contact
2000 V AC between poles 1500 V AC between contacts |
|
| Electrical Durability |
100000 cycles
|
|
| Mechanical Durability |
5000000 cycles
|
|
| IP Degree of Protection |
IP40
|
| GTIN |
03606480779268
|
|---|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| California proposition 65 |
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|
| REACh Regulation |
REACh Declaration
|
|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information |
Yes
|
|
| China RoHS Regulation |
China RoHS declaration
|
|
| Environmental Disclosure |
Product Environmental Profile
|
|
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
|
| Part Number | 750XBXRC-24A |
|---|---|
| Manufacturer | Schneider |
| Weight (KG) | 0.100000 |
