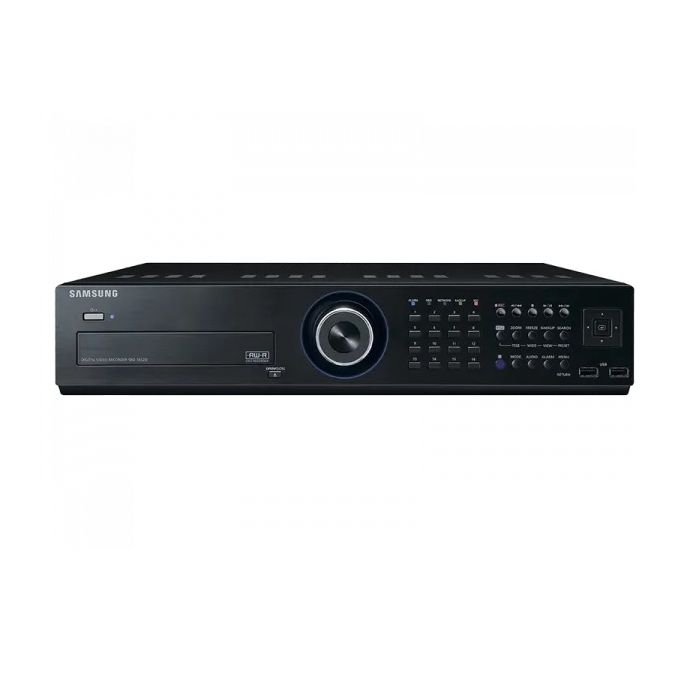

The 9TB SRD-1652D 16-Channel H.264 Digital Video Recorder from Samsung is an economical recording solution with embedded Linux and H.264 codec technology. The channel can simultaneously record up to full frame rates (30 fps NTSC / 25 fps PAL) at CIF resolution. It comes equipped with a built-in DVD burner and supports up to 4 internal SATA hard drives.
16-channel real-time DVR
- Up to 16-channel audio inputs and 1CH audio output
- Combined BNC and VGA video output for main display
- Up to 4 internal HDDs
- Free DDNS
- Support for smartphone (Android, iPhone)
- Built-in DVD-RW
- Splits and exports small parts of a recorded video - brightness and contrast control via SmartViewer
- DVD writer (back-up)
Samsung SRD-1652D Specs
Display
| Video | Input: 16 Composite video 0.5-1 Vpp Resolution: NTSC: 704 x 480, PAL: 704 x 576 |
| Live | Frame Rate: NTSC: 480 fps / PAL: 400 fps Resolution: NTSC: 704 x 480 / PAL: 704 x 576 Multi Screen Display: 1 / 4 / 6 / 8 / 9 / 13 / 16 PIP |
Performance
| Operating System | Embedded: Linux |
| Recording | Compression: H.264 Record Rate: NTSC Up to 120 fps @ 704 x 480 / Up to 240fps @ 704 x 240 / Up to 480fps @ 352 x 240 PAL Up to 100 fps @ 704 x 576 / Up to 200 fps @ 704 x 288 / Up to 400 fps @352 x 288 Mode: NTSC: Manual, schedule (continuous / event), event (pre / post), time lapse (0.9 / 1.9 / 3.8 / 7.5 / 15 / 30 fps) PAL: Manual, schedule (continuous / event), event (pre / post), time lapse (0.8 / 1.6 / 3.1 / 6.2 / 12.5 / 25 fps) Overwrite Modes: Continuous Pre-alarm: Up to 5 sec Post-alarm: Up to 6 hour (5,10, 20, 30sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hour) Editing Function Software: Contrast, brightness and color editing on live and recorded videos |
| Search (Fwd/Rev) | Search Mode: Date/time, event, back up, pos, motion (All searching mode includes preview function) Playback Function: Fast forward / backward, slow forward / backward, step forward / backward |
| Network | Transmission Speed: CIF 120/100 fps Bandwidth: 8 Mb/s, 2 / 1.5 / 1Mb/s / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 kb/s Bandwidth Control: Selectable Multi Stream: H.264 (CIF) Max. Remote Users: Search 3 / Live unicast 10 / Live multicast 20 Protocol Support: TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP Monitoring: Net-i viewer, Smart viewer, Web viewer |
| Smart Phone | Platform: Android (not compatible with all Android phones), i-Phone Protocol Support: RTSP/RTP (UDP), CGI, HTTP Transmission Speed: Wi-Fi CIF maximum 4 fps (single channel) / CIF maximum 4 fps (quad channel) 3G CIF maximum 4 fps (single channel) / CIF maximum 4 fps (quad channel) Maximum Remote Users: Live 1 |
| Storage | Internal HDD: Up to 4 SATA HDDs USB (Back up): 2 USB ports File Format (Back up): AVI, BU (DVR player), EXE (Include player) |
| Security | Password Protection: 1 Admin, 10 Group, 20 User per 1 Group, User can be assigned authority for function Data Authentication: Watermark |
Interface
| Monitors | VGA: 1 VGA 800 x 600, 1024 x 768, 1280 x 1024 resolution Main Composite: BNC, 1.0 Vpp, 75 Ω Spot Composite: Analog spot (1 BNC, 1 Vpp, 75 Ω) |
| Audio | Inputs / Output: 4 Line in Built-in 4-channel, RCA / 1-channel line out (RCA) Compression: ADPCM Sampling Rate: 16 kHz |
| Alarm | Input / Output: Terminal 16 inputs (NO/NC),Terminal 1 inputs (Alarm Reset), Terminal 4 relay outputs (NO/NC) Rating: 24 VDC / 1 A, 125 VAC / 0.5 A Remote Notification: Notification via e-mail |
| Connections | Ethernet: 1 RJ-45 10/100/1000 Base-T Serial Interface: RS-232 PTZ Control Interface: RS-485 PTZ Keyboard: RS-485 USB: USB 2.0, 2 ports (Front) Application Support: Mouse, remote controller Protocols Support: Samsung-E, Samsung-T, Pelco-D, Pelco-P, Panasonic, Phillips, AD, DIAMOND |
General
| Language | Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thai, Rumanian, Serbian, Croatian, Hungarian, Greek (22 languages) |
| Electrical | Input Voltage / Current: 100 to 240 VAC ±10%, 50 / 60 Hz autoranging Power Consumption: Maximum 60 W (with 1x HDD) |
| Environmental | Operating Temperature: 32 to 104°F (0 to 40°C) Operating Humidity: 20 to 85% RH |
| Mechanical | Dimensions (W x H x D): 17.32 x 3.46 x 16.80" (440.00 x 88.00 x 426.80 mm) Weight: Approximately 16.53 lb (7.5 kg) (with hard disks) Rack Mount Kit: 2ea |
