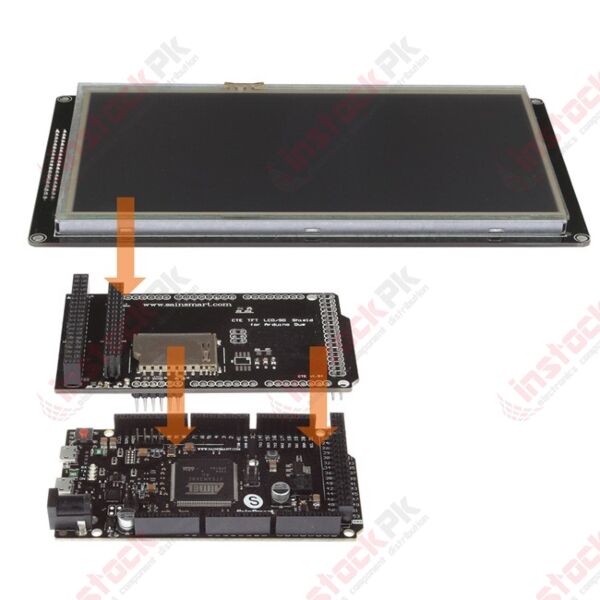

SainSmart Due Shield With 7-Inch TFT LCD Display For Arduino

This is Sainsmart Due + 7 inch TFT LCD module with the TFT LCD shield kit For arduino enthusiasts.This kit helps you to avoid complicated wiring processes and save you much time to accomplish your goal.

The SainSmart Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU .It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

FEATURES:

1. Digital I/O Pins: 54 (of which 12 provide PWM output)Analog
2. Input Pins: 12Analog
3. Outputs Pins: 2
4. Total DC Output Current on all I/O lines: 130 mA
5. Flash Memory: 512 KB all available for the user applications
6. SRAM: 96 KB (two banks: 64KB and 32KB)
7. 7.0" TFT LCD Module, SSD1963 Controller
8. Write images/icons to flash memory via SD card with zero programming
9. 64Mbit can store 1800 42x42 pixel icons/images
10. LCD Type: TFT Transmissive Normal White
11. PCB Color: Blue
12. On board 400mA DC-DC Boost regulator to provide power supply to LCD backlight
13. Module dimension: 186mmx106mmx23mm(including pin header extrusion)

BLOCK DIAGRAM:

SAINSMART TFT LCD EXTEND SHIELD FOR ARDUINO:

1. 40pin version LCD which is commonly used in previous version of TFT shield for Arduino Due 7 inch LCD Display)
2. 32pin version LCD which is commonly used in STM32 development board. (unsoldered)

The shield defines that all the the data transmit ports are PC1-PC8 and PC12-PC19,the controll pins are PD0-PD3.The perfect design could realize that the data transmits in high speed.The SPI interface is designed in the ISP header of arduino due so that the SPI transfer with DMA could be achieved in high speed with no drag.

PACKAGE INCLUDES:

1. 1x SainSmart Due
2. 1x SainSmart 7" TFT LCD Display
3. 1x SainSmart TFT LCD Adjustable Shield
4. 1x USB Cable
