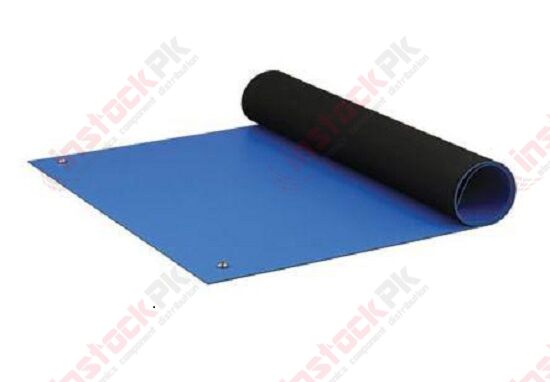

RS Pro: Bench ESD-Safe Mat, 1.2m x 600mm x 3mm - 787-2102

ESD Bench Matting

This anti-static mat from RS offers great value for money with this bench mat made from anti-static – conductive – and static-dissipative materials in synthetic rubber.
The 3-layer construction houses a conductive layer between two static-dissipative layers which conforms to ESD S20.20 and EN 61340-5-1 ESD. This ESD mat measures 1200 x 600 x 3 mm. The bench mats are supplied with a 10 mm studs.

Features and Benefits

• Great value ESD Bench Matting
• Made from anti-static (conductive) and static- dissipative materials with synthetic rubber
• Static Dissipative Layer
• Conductive Layer
• Static Dissipative Layer
• Smooth blue Finish
• All bench mats come with 10 mm studs in each corner

Construction

• 3 mm thick 3 layer structure
• A surface layer is a 1.25 mm thick static-dissipative layer
• A middle layer is a 0.5 mm conductive layer
• The bottom layer is a 1.25 mm thick static-dissipative layer

Dimensions

• 1200 x 600 x 3 mm

Why is it important to be ESD safe?

ESD safe mats help to create an ESD protected area (EPA). This is a defined space where all surfaces, objects, people and ESD Sensitive Devices (ESDs) are kept at the same electrical potential. This is achieved by using anti-static materials such as rubber. The mats can be used on your worktop bench or the floor. You can also use ESD safe gloves and ESD safe footwear to ensure optimum personal grounding and protection. It's important to create an EPA because electrostatic discharge can cause safety issues and damage your electrical components.

Note

The bench mat is supplied with 10 mm studs.

Standards

Conforms to ESD S20.20 and EN 61340-5-1 ESD.
