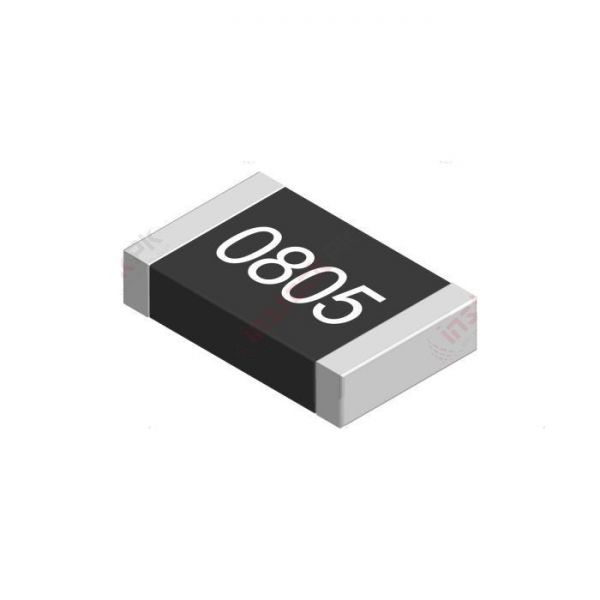

RoyalOhm: Think Film Resistor - SMD 10KOhm 0805 1% 0.25W 1/4W - HF0805-10K
SKU
MD-01292
PKR 5.00
10K .125W 1% 0805 Metal Film SMD Resistor - Reel of 5000
⚡ Real-Time Stock:
19438 Units
✔ In Stock & Ready to Ship
- Buy 100 for PKR 4.00 each and save 20%
- Buy 500 for PKR 3.50 each and save 30%
- Buy 2500 for PKR 2.50 each and save 50%
- Buy 5000 for PKR 1.25 each and save 75%
Category: Resistors
Features:
- High grade thick film metal glazed ceramic body
- Suitable for reflow or hand soldering
- Temperature range -55° to +125°C
- Temperature co-efficient ±100 ppm/°C
- Tolerance ±1%
- 0.125W rated
SMD Resistor Value Markings:
Identified by a 4 digit figure, the first 3 digits are the value followed by the multiplier, or number of zeros. ie. 1503 printed on the resistor equates to 150 + three zeros = 150,000Ohm or 150KOhm.
| Part Number | HF0805-10K |
|---|---|
| Manufacturer | Royal Ohm |
| Weight (KG) | 0.000100 |
| Resistance Value (Ohm) | 10K Ohm |
| Power Rating | 0.125W (1/8W) |
| Tolerance | 1% |
| SMD_Package | SMD/SMT-0805 |
| Product Availability | In Stock |
