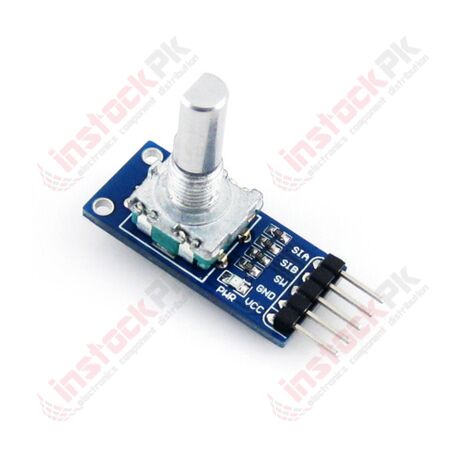

Rotation Sensor Rotary Encoder Module For Arduino
SKU
MD-00260
PKRĀ 850.00
Incremental encoder is a kind of rotation sensor for translating the rotary displacement into a sequential of digital pulse signal.
š¦ Pre-Order Queue:
0 Units
ā Available on Backorder (In 15-30 business days)
- Buy 3 for PKRĀ 810.00 each and save 5%
- Buy 10 for PKRĀ 780.00 each and save 8%
- Buy 50 for PKRĀ 760.00 each and save 11%
Categories: Sensor Modules, Others
Incremental encoder is a kind of rotation sensor for translating the rotary displacement into a sequential of digital pulse signal. The displacement can be gained by counting the number of the pluses outputted in the course of clockwise or anticlockwise rotation. Comparing with the potentiometer, the rotary counter has no limit for counting. So, there is a reset button provided to reset the counter to the initial state, restarting at 0.
FEATURES:
- Detects clockwise/anti-clockwise rotations: degrees and laps
- Pulses per lap: 15
- Power: 3.0V ~ 5.3V
- Dimension: 32.1mm * 15.4mm
- Mounting holes size: 2.0mm
- Used in Industrial controls positioning
HOW TO USE:
In the case of working with a MCU:
- VCC ↔ 3.0V ~ 5.3V
- GND ↔ power supply ground
- SW ↔ MCU.IO (encoder button status)
- SIB ↔ MCU.IO (output status)
- SIA ↔ MCU.IO (output status)
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X Rotation Sensor Rotary Encoder Module For Arduino
| Part Number | NA |
|---|---|
| Weight (KG) | 0.100000 |
| Manufacturer | Made in China |
| Voltage (Min) | 3V |
| Voltage (Max) | 5.3V |
| Output Voltage | NA |
| Power | NA |
| Current (A) | NA |
| Frequency | NA |
| Load Cell (kg) | NA |
| Output Type | DC |
| Range | NA |
| Temperature Range (Min) | NA |
| Temperature Range (Max) | NA |
| Operating System | NA |
| Resistance Value (Ohm) | NA |
| Baud Rate | NA |
| Interface | NA |
| Num of Pin's | 4 |
| Size (mm) | 32.1mmX15.4mm |
