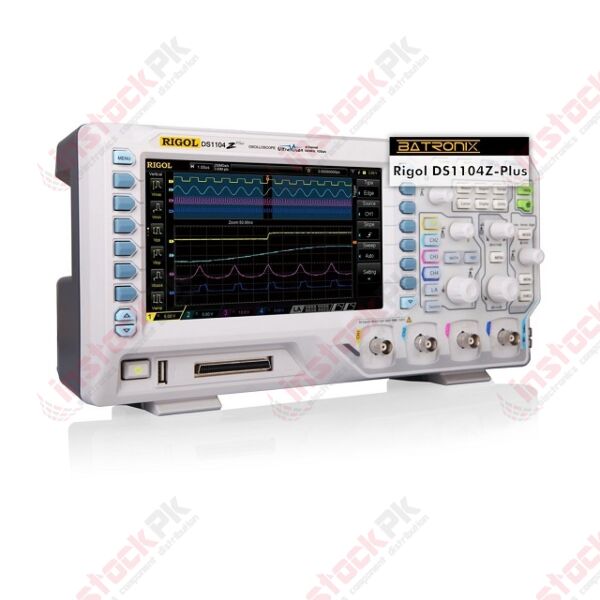

Rigol: Digital Storage Oscilloscope, 4 Channel, 100MHz, 1 GSa/s and 12 Mpts - DS1104Z Plus

SKU
MD-01924
PKR188,000.00
Quantity: 0
4 channel oscilloscope with 100 MHz bandwidth, 1 GSa/s and 12 Mpts memory depth. Plus Version with MSO logic analyser upgrade option!

The Rigol DS1104Z-Plus is a very high quality 4 channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz.

The Rigol oscilloscopes are equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.

This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS1074Z-Plus has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quicky. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.

The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

Model DS1054Z DS1074Z Plus DS1074Z-S Plus DS1104Z Plus DS1104Z-S Plus
Channels 4 4 4 4 4
Bandwidth 50 MHz 70 MHz 70 MHz 100 MHz 100 MHz
Sampling Rate 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s
Memory Depth 12 Mpts /
24 Mpts (Option)
12 Mpts /
24 Mpts (Option)
12 Mpts /
24 Mpts (Option)
12 Mpts /
24 Mpts (Option)
12 Mpts /
24 Mpts (Option)
2 CH Waveform-Generator

Special Features

https://www.batronix.com/images/generated/rpl1116-l-1200x771-White-min.jpg

MSO Ready (option, not included)

The plus models are MSO ready, and can be upgraded by the user with an MSO upgrade option at any time. This is a purchasable option and can be found in the accessories. If you plan to buy a new device with logic analyser already included please take a look at the Rigol MSO1000Z series instead.
https://www.batronix.com/images/generated/4ch-display-1200x720-White-min.jpg

Large Display for 4 Channels

It is possible to display all four channels on the large display with 17.8 cm (7") diameter and a resolution of 800 × 480 pixel without any problems.
https://www.batronix.com/images/generated/deepmemory-1200x720-White-min.jpg

Deeper Memory

The Rigol DS1000Z oscilloscopes can store up to 12 million measurement points. You can zoom into a selected part of the captured waveforms to get more details and scroll within the measurement points. With the optional memory module MEM-DS1000Z even 24 million data points are available. The memory expansion module "MEM-DS1000Z" is available on this page under the "accessories? tab.
https://www.batronix.com/images/generated/capturerate-1200x720-White-min.jpg

Fast Capturing

The high sampling rate (up to 1 GSa/s) of the Rigol DS1000Z Oscilloscopes and the large memory makes it possible to record up to 30,000 waveforms per second.
https://www.batronix.com/images/generated/record-1200x720-White-min.jpg

Realtime waveform record, replay, analysis (option)

With the optional recorder module DS1000Z-REC the recorded waveforms can be conveniently recorded, displayed and analyzed. The recorder module "DS1000Z-REC" is available on this page under the "accessories" tab.
https://www.batronix.com/images/generated/intensity-grading-1200x720-White-min.jpg

Multi-Level Intensity Grading Display

"Multi-Level Grading Intensity" display, extensive signal characteristics with a very large number of measurement values can also be displayed completely.
https://www.batronix.com/images/generated/trigger-1200x720-White-min.jpg

Extensive Trigger Options

The Rigol oscilloscopes offer extensive trigger options for a professional use. The special triggers Windows, Nth Edge, Delay, Timeout, Runt, RS232/UART, I²C und SPI are available as option as "AT-DS1000Z Advanced Trigger" module on this page under the "accessories? tab.
https://www.batronix.com/images/generated/decoder-1200x720-White-min.jpg

Serial bus decoding function (option)

With the optional "SA-DS1000Z Decoding Kit" serial data packages of different serial bus systems can be analyzed, decoded, and displayed directly as byte values. Supported protocols are: RS232/UART, I²C, and SPI. The serial decoding module "SA-DS1000Z" is available on this page under the "accessories" tab.
https://www.batronix.com/images/generated/math-1200x720-White-min.jpg

Advanced Math

The DS1000Z series oscilloscopes comes with a modern and advanced math system which lets it solve complicated signal calculations quite simply with predefined formulas.
https://www.batronix.com/images/generated/masktest-1200x720-White-min.jpg

Masked Pass/Fail-Tests

Pass/fail testing can be used for troubleshooting in various environments like communication networks.
https://www.batronix.com/images/generated/automeasure-1200x720-White-min.jpg

Auto measurements with statistics

The oscilloscope measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).

https://www.batronix.com/images/generated/2chgen-1200x720-White-min.jpg

Build-In 2 CH Waveform Generator (DS1000Z-S Version only)

The DS1000Z-S Versions of these devices offer a build-in 2 channel arbiträry waveform generator with 14 Bit resolution, 25 MHz bandwidth and 200 MSa/s sampling rate.

General Dat Digital Oscilloscope Rigol DS1104Z-Plus
Display 17,8 cm (7") WVGA-Farb-LCD
Resolution 800 × 480 Pixel
Interface

USB-host for i.e. USB sticks

USB-Device for a PC connection or USB Pict-Bridge printerinterface

LAN for network connectivity (LXI compilant)

GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB

Module

GPIB (IEE-488, General Purpose Interface Bus) über das USB-GPIB Modul

Module

Trigger- and Calibrationoutput

Size (W × H × D) 313 mm × 160 mm × 122 mm
Weight 3.2 kg
Oscilloscope Functions Digital Oscilloscope Rigol DS1104Z-Plus
Channels 4
Real-time sample rate

1 GSa/s realtime (1 Channel)

500 MSa/s realtime (2 Channels)

250 MSa/s realtime (2 Channels)

Bandwidth 100 MHz
Sampling Modus Normal, average, peak detect
Mathematics userdefined, FFT (Fast Fourier Transform)
FFT windows Rectangle, Hanning, Hamming, Blackman
Signal Bus Decoding RS232/UART (optional), I²C (optional), SPI (optional)
Signal Digital Oscilloscope Rigol DS1104Z-Plus
Input DC/AC Kopplung, CAT I 300 Vrms, CAT II 100 Vrms
Real-time sample rate up to 1 GSa/s realtime
Time base 5 ns/div bis 50 s/div
Memory

max. 12M Messpunkte (1 Channel)

max. 24M Mpts. (1 Channel) with memory option MEM-DS1000Z

max. 6M Mpts. (2 Channels)

max. 12M Mpts. (2 Channels) with memory option MEM-DS1000Z

max. 3M Mpts. (3/4 Channels)

max. 6M Mpts. (3/4 Channels) with memory option MEM-DS1000Z

Vertical Digital Oscilloscope Rigol DS1104Z-Plus
Analog digital converter (A/D) 8 Bit
Sensitivity range (V/div) 1mV/div bis 10 V/div
Offset range 1mV/div bis 10 V/div
Trigger Digital Oscilloscope Rigol DS1104Z-Plus
Trigger Kanaltriggerung, EXT

Signal system and line/field frequency

(Video Trigger mode)

PAL, NTSC, SECAM

480P, 576P HDTV standards

Triggerfunktionen Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay
Measurement Digital Oscilloscope Rigol DS1104Z-Plus
Cursor measurement Manual, Track and Auto Measure modes
Auto measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot,

Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width,

Positive, Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2 (fall),

Phase1-2 (rise), Phase1-2 (fall)

Part Number DS1104Z-Plus
Manufacturer RIGOL
Weight (KG) 2.800000
Packing Unit 1 Piece
Number of Channels 4
Product Availability Available on Demand
