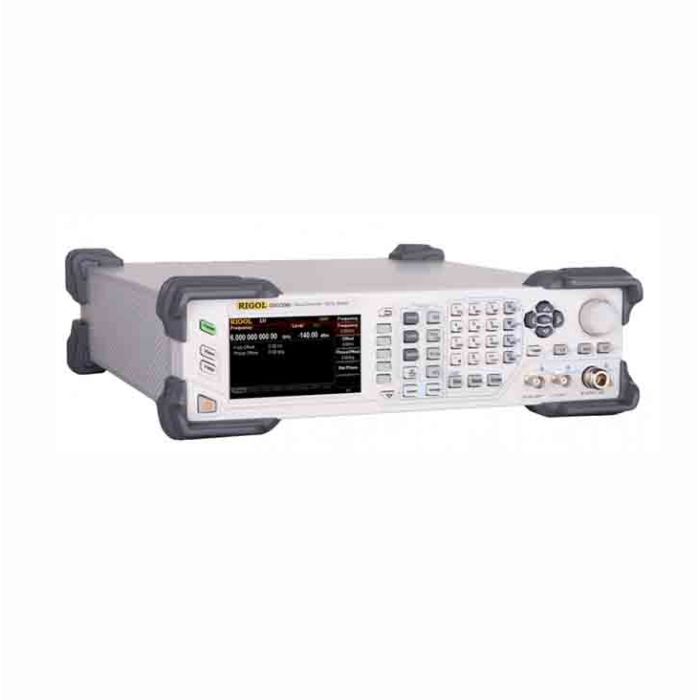

RF Signal Generator DSG3060 (6GHz)

As Rigol's RF first signal source, the DSG3000 series offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output. The DSG3060 has a maximum frequency of 6 GHz. Featuring a high signal purity with phase noise measuring.

FEATURES:

1. 3 GHz / 6 GHz versions available
2. Optional I/Q modulation and I/Q baseband outputs
3. USB/LAN/GPIB interfaces standard. Supports LXI-C and SCPI command set
4. AM/FM/øM modulation standard. Standard pulse modulation

SPECIFICATIONS:

1. Model: DSG3060
2. Max. Frequency: 6 GHz
3. Phase Noise (typical):<-110dBc/Hz@20kHz
4. Amplitude Accuracy (typical):<0.5dB
5. Connectivity: LXI-C, USB, GPIB
6. Modulation: AM, FM, Phase, Pulse

RELATED DOCUMENTS:

1. Datasheet.
2. User manual.
3. Quick Guide.

PACKAGE INCLUDES:

1. 1 X RF Signal Generator DSG3060 (6GHz)
