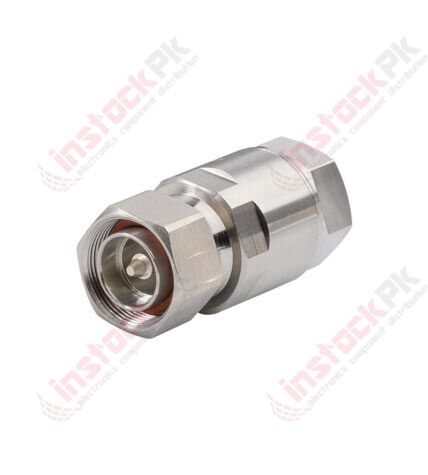

CommScope Andrew Solutions- RF DIN Male Connector RF7/16 L5TDM-PS

FEATURES:

1. Outer Contact Attachment Method: Ring-flare
2. Inner Contact Attachment Method: Captivated
3. Outer Contact Plating: Trimetal
4. Inner Contact Plating: Silver
5. Attachment Durability: 25 cycles
6. Interface Durability: 500 cycles
7. Interface Durability Method: IEC 61169-4:9.5
8. Connector Retention: Tensile Force: 1334 N   |   300 lbf
9. Connector Retention: Torque: 8.13 N-m   |   72.00 in lb
10. Insertion Force: 200.17 N   |   45.00 lbf
11. Operating Temperature : -55 °C to +85 °C (-67 °F to +185 °F)
12. Storage Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
13. Immersion Test: MatingUnmated
14. Immersion Test Method: IEC 60529:2001, IP68
15. Vibration Test Method: IEC 60068-2-6
16. Corrosion Test Method: MIL-STD-1344A, Method 1001.1, Test Condition A

SPECIFICATIONS:

1. Interface: 7-16 DIN Male
2. Body Style : Straight
3. Mounting Angle:Straight
4. Connector Impedance : 50 ohm
5. Operating Frequency Band: 0 – 5000 MHz
6. Cable Impedance : 50 ohm
7. RF Operating Voltage, maximum (vrms): 1415.00 V
8. dc Test Voltage: 4000 V
9. Outer Contact Resistance, maximum: 1.50 mOhm
10. Inner Contact Resistance, maximum: 0.80 mOhm
11. Insulation Resistance, minimum: 5000 MOhm
12. Average Power: 2.3 kW @ 900 MHz
13. Peak Power, maximum: 40.00 kW
14. Insertion Loss, typical: 0.05 dB
15. Shielding Effectiveness :-130 dB

RELATED DOCUMENTS:

1. Datasheet.

PACKAGE INCLUDES:

1.  1 X RF DIN Male Connector RF7/16
