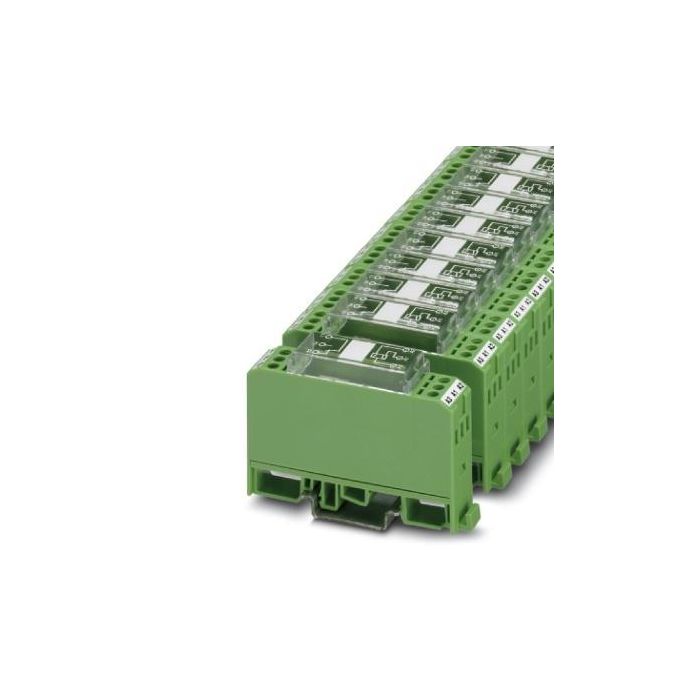

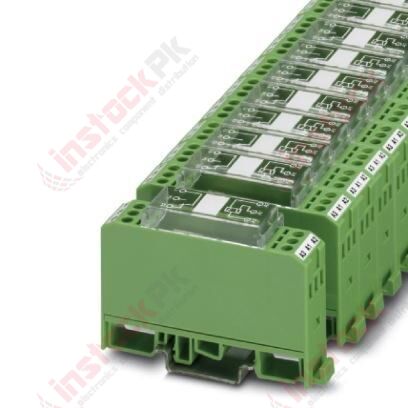

Relay Module - EMG 17-REL/SG-B 48/21/P (2946654)

 FEATURES:

1. Test voltage relay winding/relay contact: 4 kVrms (50 Hz, 1 min.)
2. Operating mode: 100% operating factor
3. Mechanical service life: Approx. 107 cycles
4. Degree of pollution: 2
5. Overvoltage category: III
6. Standards/regulations: EN 50178
7. Degree of pollution: 2
8. Overvoltage category: III
9. Designation: Air clearances and creepage distances between the power circuits
10. Standards/regulations: DIN EN 50178
11. Mounting position: any
12. Assembly instructions: In rows with zero spacing

SPECIFICATION:

1. Nominal input voltage UN: 48 V DC
2. Input voltage range in reference to UN: 0.8 ... 1.1
3. Typical input current at UN: typ. 8.5 mA
4. Typical response time : 5 ms
5. Typical release time: 5 ms
6. Coil voltage: 24 V DC
7. Protective circuit: Free-wheeling diode Damping diode
8. Reverse polarity protection: Polarity protection diode
9. Pulse time range: 30 ms ... 5 s
10. Power dissipation for nominal condition: 0.41 W
11. Contact type: Single contact, 1-PDT
12. Type of switch contact: Single contact
13. Contact material: AgSnO
14. Maximum switching voltage: 250 V AC/DC
15. Minimum switching voltage: 5 V (at 100 mA)
16. Min. switching current : 1 mA (at 24 V),100 mA (At 5 V)
17. Maximum inrush current: 8 A
18. Limiting continuous current: 6 A
19. Maximum switching voltage: 250 V AC/DC
20. Limiting continuous current: 6 A
21. Maximum inrush current: 8 A

RELATED DOCUMENTS:

1. Datasheet.

PARAMETERS:

1. Width: 17.5 mm
2. Height: 75 mm
3. Depth: 62 mm

PACKAGE INCLUDES:

1. 1 X Relay Module - EMG 17-REL/SG-B 48/21/P (2946654)
