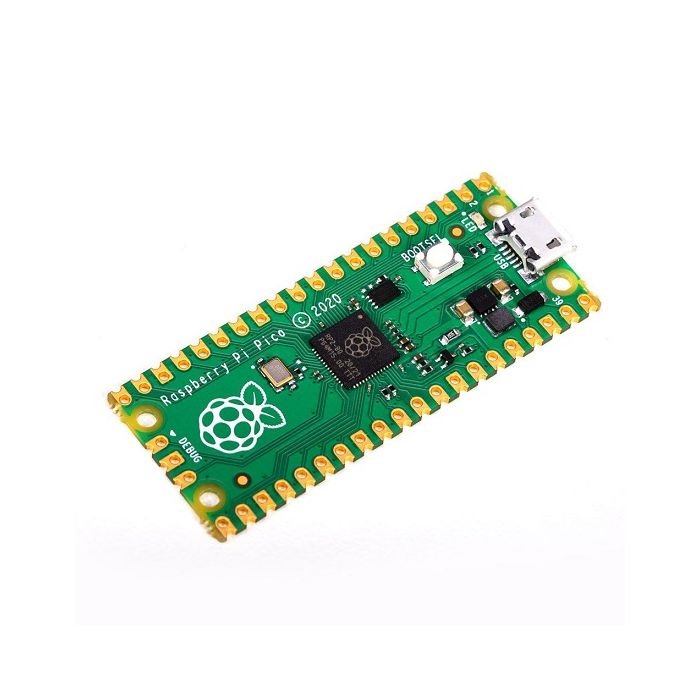

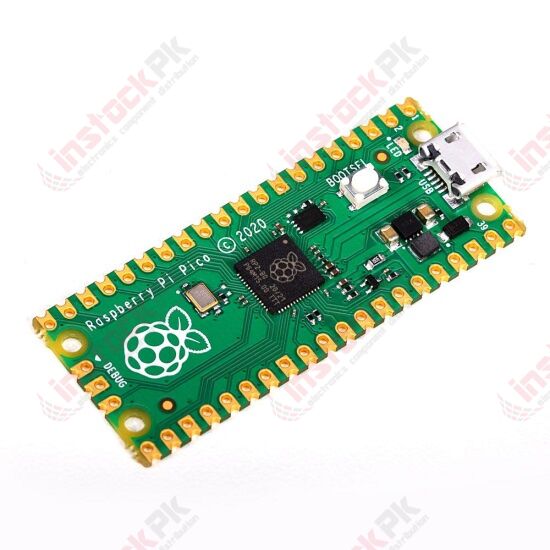

Raspberry Pi: Pico Microcontroller Board with Dual Core Arm Cortex M0+ RP2040 - SC0915

SKU
MD-01757
PKR1,550.00
Quantity: 66
  • Buy 3 for PKR1,472.50 each and save 5%
  • Buy 10 for PKR1,426.00 each and save 8%
  • Buy 50 for PKR1,395.00 each and save 10%

Description

The Raspberry Pi Pico is an entirely new type of microcontroller from Raspberry Pi. Small, cheap and flexible - it’s great for learning to code with MicroPython!

This is the standard Raspberry Pi Pico - which comes without any headers fitted. You can also purchase our pre-soldered Raspberry Pi Pico here

Whether you’re looking to learn about the MicroPython programming language, take your first steps in physical computing or want to build a hardware project, the Raspberry Pi Pico – and its amazing community – will support you every step of the way.

Check out our full range of Raspberry Pi Pico accessories and add-ons here!

Raspberry Pi Pico Top

The Pico isn’t designed to replace the Raspberry Pi, which is a different class of device known as a single-board computer.

Whereas you might use your Raspberry Pi to play games, write stories and browse the web, your Raspberry Pi Pico is designed for physical computing projects where it can control familiar components such as LEDs, buttons, sensors, motors and even other microcontrollers.

The Pico can be quickly and easily programmed using MicroPython and C/C++ using popular editors such as Thonny. Getting started is also very easy thanks to the dedicated Getting Started page.

You can program your Pico from your computer, a Raspberry Pi 4 or even another Raspberry Pi Pico!

Raspberry Pi Pico Pinout

Raspberry Pi Pico Specifications

The main chip on board is the 'RP2040' made by Raspberry Pi (their first in-house microcontroller chip!) and is a dual-core ARM Cortex M0+ processor, with a flexible clock running up to 133MHz.

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264kB of SRAM, and 2MB of onboard Flash memory
  • Castellated module allows soldering directly to carrier boards
  • USB 1.1 Host and Device support
  • Low-power sleep and dormant modes
  • Drag & drop programming using mass storage over USB
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
  • Real-time clock (RTC)
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8×Programmable IO (PIO) state machines for custom peripheral support
  • Dimensions: 51mm x 21mm
Part Number SC0915
Manufacturer Raspberry Pi
Weight (KG) 0.010000
Product Availability In Stock
