Raspberry Pi: Compute Module 4 IO Board - CM4IO

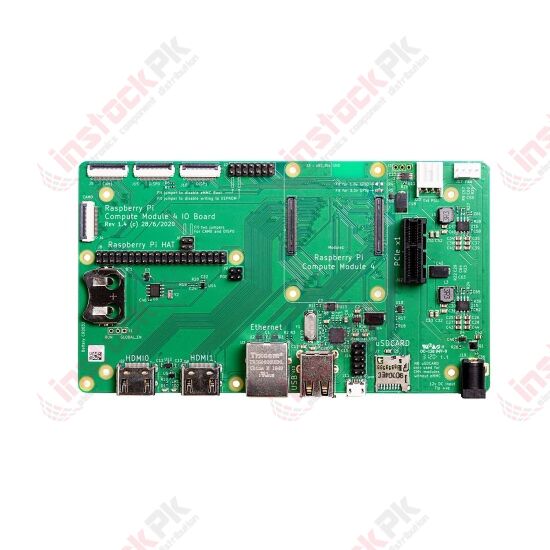

Like the IO boards for earlier Compute Module products, this breaks out all the interfaces from the Compute Module to standard connectors, providing a ready-made development platform and a starting point for your own designs. CAD for the IO board is available in KiCad format.

In addition to serving as a development platform and reference design, the IO board is a finished product in its own right: if you require a Raspberry Pi that supports a wider range of input voltages, has all its major connectors in a single plane, or allows you to attach your own PCI Express devices, then Compute Module 4 with the IO Board does what you need.

Features

• Standard 40-pin GPIO header
• 2 × full-size HDMI 2.0 connectors
• 2 × MIPI DSI display FPC connectors
• 2 × MIPI CSI-2 camera FPC connectors
• 2 × USB 2.0 connectors
• Gigabit Ethernet jack with PoE support 3
• PCIe Gen 2 x1 socket
• MicroSD card socket (for use with CM4 Lite modules)
• Battery-backed real-time clock
• 5-12V input voltage range (separate power supply required)
